| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | DZ47 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 12 poles packed in one small box and then in carton |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200000 pcs per month |
| Breaking Capacity: | 6 Ka | Poles Available: | 1pole, 2 Pole, 3 Pole, 4pole |
|---|---|---|---|
| Ampere: | 6A,10A,16A,20A,25A,32A,40A,50,63A | Voltage: | 240V/415V |
| Curve: | B; C; D | Patent: | Design Patent |
| Highlight: | small circuit breaker,micro circuit breaker,MCB Micro Circuit Breaker |
||

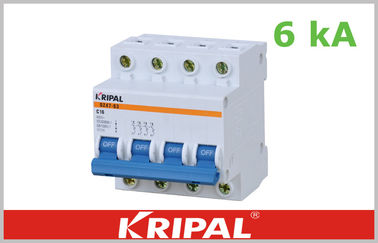

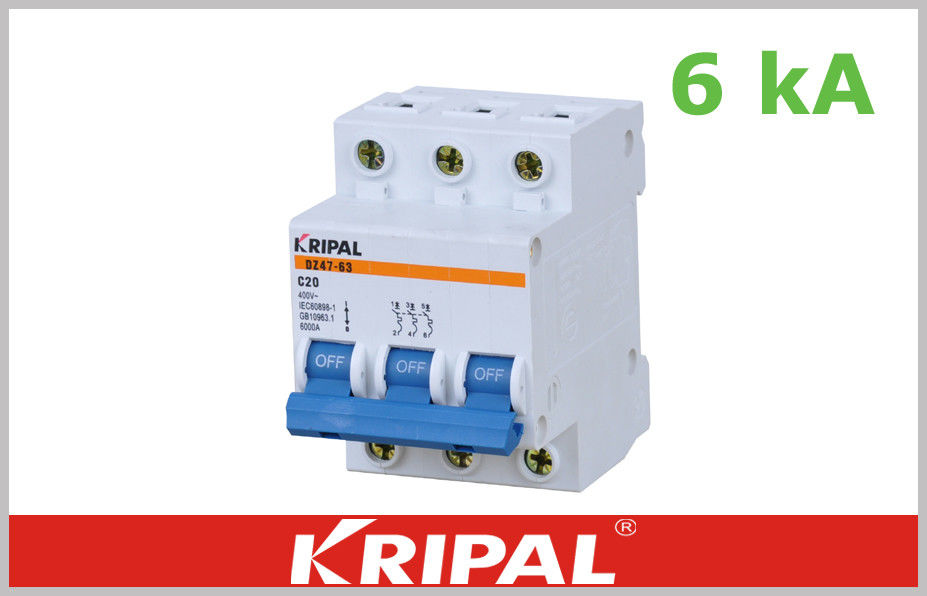

DZ47 Mcb Mini Circuit Breaker
A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. Its basic function is to detect a fault condition and interrupt current flow. Unlike afuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. Circuit breakers are made in varying sizes, from small devices that protect an individual household appliance up to large switchgear designed to protect high voltage circuits feeding an entire city.
Product advantages:
1. completely independent intellectual property right,national utility model patent.
2. The overall is nice with sleek and smooth line.
3. It is easy to distinguish with different colors of different specifications.
4. It is comfortable to operate with embowed handles.
5. It is flexible to install and dismantle with creative design clips.
6. Setting oblate direction ,more beauty and more standard.
7. To meet customers needs with more connection styles.
8. Enhancing the ability of reflex arc when short circuit breaking with many improvements.
9. Enhancing the ability of extinction arc when short- circuit breaking with many improvements.
10. Short-circuit breaking capacity (ICS) of products get to 6KA combining many improvement.
Specitifcation:
|
Standard |
|
IEC898,GB10963-99,EN60898 |
|
Number of poles |
|
1P.2P.3P.4P |
|
Rated current(In) |
|
1,2,3,4,6,10,16,20,25,32,40,50,63 |
|
Rated voltage(Un) |
|
AC240/415V |
|
Rated frequency |
|
50/60Hz |
|
Tripping curve |
|
B,C,D |
|
Release action characteristics |
Time delay |
1.13In≥1h non-trip |
|
1.45In<1h trip |
||
|
2.55In 1S<60S trip |
||
|
Instantaneous(Curve C) |
5In≥0.1S non-trip |
|
|
10In<0.1 trip |
||
|
Magnetic releases operate |
|
B curve:between 3 and 5In |
|
C curve:between 5 and 10In |
||
|
D curve:between 10 and 14In |
||
|
Rated breaking capacity(Lcn) |
|
3000A,4500A,6000A |
|
Endurance |
|
≥2000 |
|
Circumstance temperature |
|
-5°c+40°c |
|
Electrical life |
|
≥6000times |
|
Mechanical life |
|
2000 times |
|
Tropical ration |
|
Treatmen 2(RH95%,at 55°c) |
|
Protection degree |
|
IP20 |
