Place of Origin: | China |
Brand Name: | KRIPAL |
Model Number: | UK-XZS3 series |
Minimum Order Quantity: | 5 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Each unit packed in a ihoneycomb box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 10000 pcs per month |
Material: | Plastic | Protection Grade: | IP66,IP65, IP44 |
---|---|---|---|
Rated Voltage: | AC 230V, 400V | Rated Frequency: | 50Hz |
Socket Outlet: | Customized | Circuit Protection: | Mcb, Rcd |
Highlight: | Electrical Distribution Box,Power Pole Distribution Box |

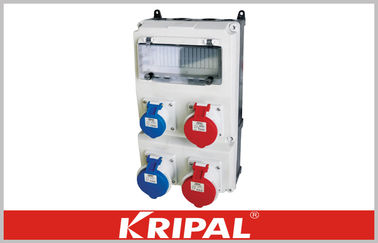

IP44 Indoor Plastic Electrical Distribution Box for Standby Power Supply
Descriptions:
UK series PC power maintenance box is in line with relative IEC standards, which is for electrical network (50-60Hz, Voltage not higher than 660V). At the same time, they are with circuit protection like overload, short circuit and current leakage and provide the power outlets for electrical equipments.
From IP44 to IP67 with leakage protection switch, fuse or miniature circuit breakers, various requirements can be met. Combined outlet box can be used in the field, piers and other places, providing maximum security guarantees.
A series of dust water-resistant patch device for your selection.
Specifications:
Rated insulation voltage: |
AC 400V (660V) |
Rated operation voltage: |
AC 230/400V, |
Rated frequency: |
50-60 Hz |
Protection class: |
IP44, IP65, IP66, IP67 |
Single-loop Output Current: |
10A, 16A, 20A, 32A, 40A,50A,63A, 125A etc. |
Single-loop output voltage: |
20-25V, 40-50V, 100-130V, 200-250V, 380-480V, 500-660V |
Poles of output socket: |
2P+E, 3P + E, 3P + N + E |
Applicable environment: |
indoor & outdoor |
Standards |
European standards as IEC/EN; Australian standards as AS/NZS |
Features:
1. Distribution boxes for flexible current supply, portable and handy,
2. High resistance to weathering and chemicals;
3. All combinations are tested for electrical safety and quality;
4. IP44/IP65/IP66/IP67 protection degree against dust and liquid bodies;
5. IK8 mechanical protection degree;
6. High quality thermoplastic material;
7. Available component preset as requested;
8. Widely used in the following sites, such as: Repair, extension and demolition, work on existing
buildings, Construction sites, Exhibition center, Factories…c
Applications:
These boxes are wildly used in oil, chemical industry, metallurgy, power plants, coal mines, machinery, textile, ports, docks and other industries, specifically for maintenance in the tunnel range of rail transit.
Special requirements?
We will help you find an individual solution for your switching needs.
Our project engineers are here to understand the special requirements of your project and assist to develop a solution as a partner.
Should your requirements not be covered by our extensive standard product range we have our own R&D and mould tooling center for special switches in order to flexibly, promptly and cost effectively meet your individual requirements.
Just let us know your ideas, and we will show you a great solution.
Service:
1. Strong production capacity and strict quality control system;
2. Your inquiry and problems related to our products or prices will be replied in 24 hours;
3. Well-trained and experienced staffs to answer all your inquires;
4. After-sale tracking service for all of our clients;
5. OEM & ODM: available; there is our own mould tooling center in KRIPAL factory.
6. Samples: provided freely
7. More than 20 years Manufacturing experience
