Place of Origin: | China |
Brand Name: | KRIPAL |
Certification: | CE |
Model Number: | UK-BZS3-3003 |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Each unit packed in a ihoneycomb box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 10000 pcs per month |
Pins: | 2P+E, 3P+E, 3P+N+E | Ampere: | 16A, 32A, 63A, 125A |
---|---|---|---|
Protection Grade: | IP44/IP65/IP67 | Rated Voltage: | AC 230V, 400V |
Rated Frequency: | 50Hz | Socket Outlet: | Customized |
High Light: | Electrical Distribution Box,Power Pole Distribution Box |

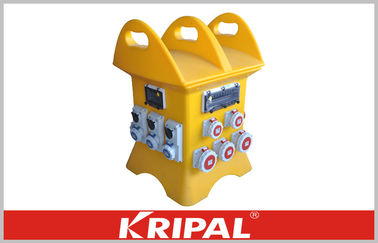

Mobile Industrial Electric Distribution Socket Box for Temporary Power
The KRIPAL power distribution box provides a temporary power solution for construction sites and outdoor events
Each product has the flexibility to interconnect with any of other products in the range or to be used as a stand alone power centre
All of the distribution box are supplied with a range of single phase and three phase outlets to suit most requirements
Interconnecting leads are available in various lengths to complete the KRIPAL system.
The Industrial Power distribution cabinet are designed with transparent windows which is convenient and safe for operation. No need to open the doors.
Specifications:
Product |
Industrial power distribution box |
Protection |
MCB, RCCB |
Side A |
3pcs* IP67 16A 2P+E CEE interlocked socket; 3pcs* 16A 3P MCB |
Side B |
5pcs * IP67 16A 3P+N+E CEE sockets; 1pcs* 63A 4P RCBO |
Side C |
2pcs* IP67 32A 2P+E CEE socket 1 pcs* IP67 32A 3P+N+E CEE socket |
Side D |
2 pcs * MCB 32A 1P 1 pcs * RCCB 16A 3P |
Applications:
These Industrial Mobile Distribution Boxes are wildly used in oil, chemical industry, metallurgy, power plants,
coal mines, machinery, textile, ports, docks and other industries, specifically for maintenance in the tunnel
range of rail transit.
Full range:
Rated insulation voltage: AC 400V (660V)
Rated operation voltage: AC 230/400V, 440VDC
Rated frequency: 50Hz
Protection class: IP44, IP65, IP67
Single-loop Output Current: 10A, 16A, 20A, 32A, 50A,63A, 125A etc.
Single-loop output voltage: 20-25V, 40-50V, 100-130V, 200-250V, 380-480V, 500-660V
Poles of output socket: 1P + N + PE, 3P + E, 3P + N + E
Applicable environment: indoor & outdoor
Standards: European standards, AS/NZS standards
Service:
1. Strong production capacity and strict quality control system;
2. Your inquiry and problems related to our products or prices will be replied in 24 hours;
3. Well-trained and experienced staffs to answer all your inquires;
4. After-sale tracking service for all of our clients;
5. OEM & ODM: available; there is our own mould tooling center in KRIPAL factory.
6. Samples: provided freely
7. More than 20 years Manufacturing experience
