| Place of Origin: | CHINA |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | UKS-J244-7 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 50000 pcs per month |
| Rated Current: | 16A,32A | Rated Voltage: | 110V,22V,380V,500V |
|---|---|---|---|
| Material: | Nylon,PA,PC,Copper | Earth Contact: | 4H,6H,7H,9H |
| Standard: | IEC Standard | Warranty: | One And A Half Years |
| High Light: | 4P Mechanical Interlock Switch Socket,IEC Interlock Switch Socket,32a Interlocked Socket |
||
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 4h | 110-130V | Yellow | 2P+E | UKS-J134-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-J134-6 | |
| 9h | 220-250V | Blue | 3P+E | UKS-J144-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-J144-6 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-J154-6 | |
| 7h | 500V | Black | 3P+N+E | UKS-J154-7 | |
| 32A | 4h | 110-130V | Yellow | 2P+E | UKS-J234-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-J234-6 | |
| 9h | 220-250V | Blue | 3P+E | UKS-J244-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-J244-6 | |
| 6h | 380-415V | R ed | 3P+N+E | UKS-J254-6 | |
| 7h | 500V | Black | 3P+N+E | UKS-J254-7 |

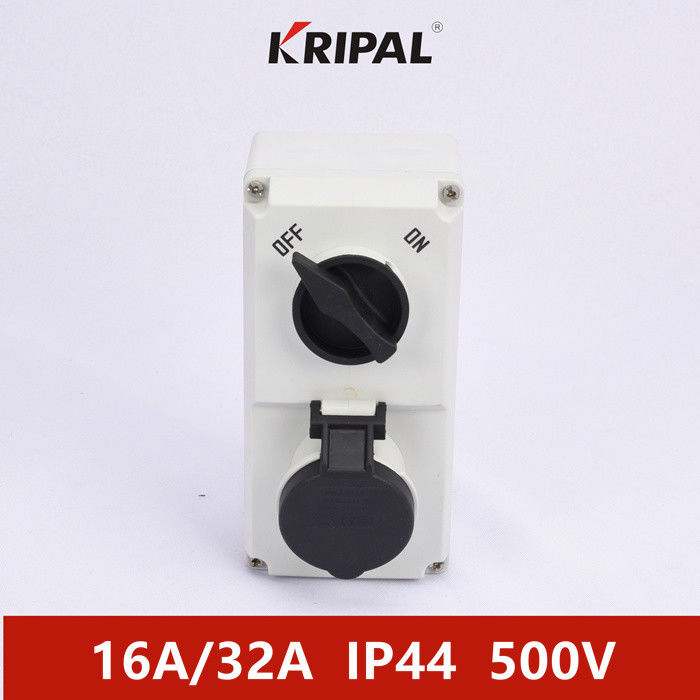

| Product | Interlocked Switch Socket B |
| Rated current | 16A,32A |
| No. of poles | 2P+E,3P+E,3P+N+E |
| Voltage | 110V;220V-250V;380V-415V;500V |
| Protection degree | IP44 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON,PA, PC, copper |
| Color | 110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black) |
1. WATERPROOF TEST: IP DEGREE,WEATHERPROOF
As is well-know , the prodcut in working condition or in storage condition , tends to be afected by various kinds of liquid more or less.
The osmosis fow impact or accumulation of liquid may have a variety of efect on the product material and performance , and even may destory its structure.Therefore,the afect from liquid can not be ignored.
The purpose of rainfall test is to confirm the reverse osmose capacity of the housing and its operation stability and reliability when or after the equipment undergoes liquid erosion.
2.SAND AND DUST TEST
We produce products avaliable for use around the world , so one of problems taken into account is the operational environment for the product , so as to evaluate the prodcut adaptability of stroage,transport or operation when it's exposed to atmosphere with dry sand or dust .
Sand and dust tast adopts simulated sand and dust environment to test the dust resistance of the product and to confirm whether the product can be used for long in various hostile natural environment .
3. CTI/PTI TEST
We design and develop products taking into account performance indexes of parts like metal conductive parts, and the CTI/PTI of plastic materials as wells.
The material selection for each development must undergo strictly controlled CTI/CPI for the purpose of better insulating property and safe operation.
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity. |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need. |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements. |
| Shipping | By Air, by sea, by express. |
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3.Solved the problem with you during using our products.
4. Samples will be offered to you for our future cooperation.
5.OEM and ODM service provided.
Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".
Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.
The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.
Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
