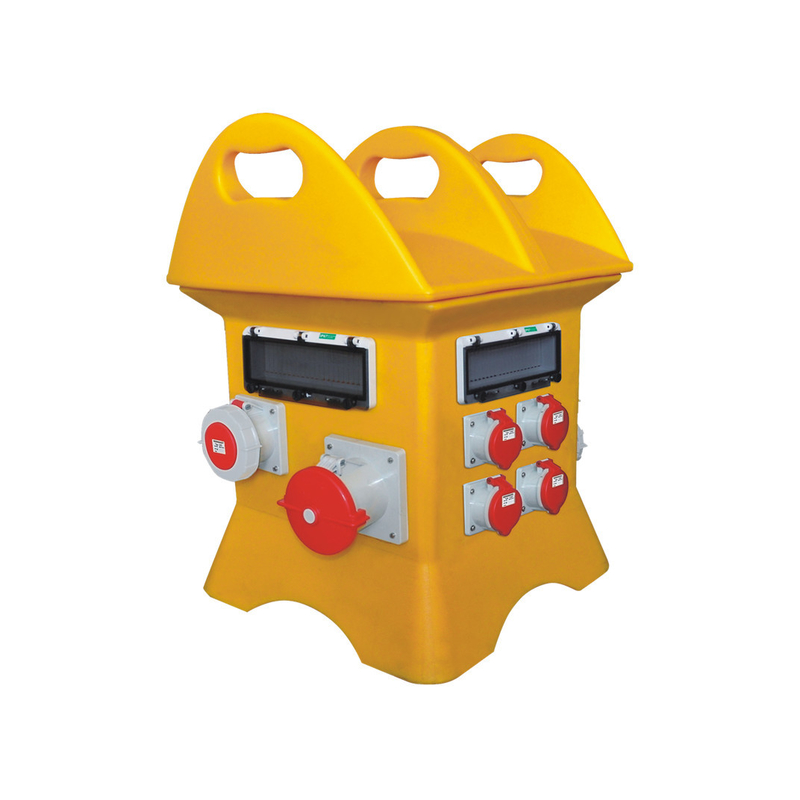

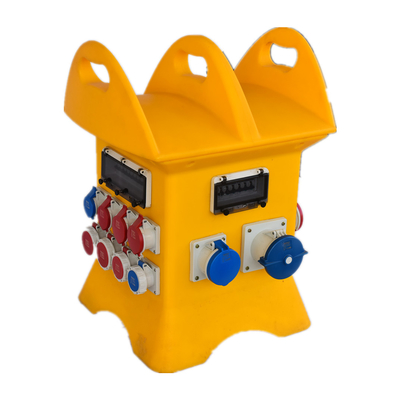

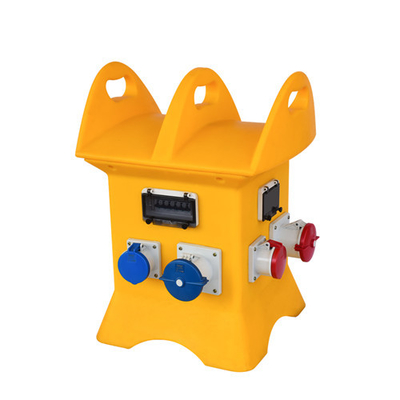

IP65 PE Waterproof Portable Electrical Distribution Box IEC standard

IP65 PE Waterproof Portable Electrical Distribution Box IEC standard

  • IP65 PE Waterproof Portable Electrical Distribution Box IEC standard
  • IP65 PE Waterproof Portable Electrical Distribution Box IEC standard
  • IP65 PE Waterproof Portable Electrical Distribution Box IEC standard
  • IP65 PE Waterproof Portable Electrical Distribution Box IEC standard
IP65 PE Waterproof Portable Electrical Distribution Box IEC standard
Product Details:
Place of Origin: CHINA
Brand Name: KRIPAL
Certification: CE
Model Number: UK-BZS3-2001
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiable
Packaging Details: Each unit packed in a master carton box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Material: PE Rated Frequency: 50Hz
Protection Class: IP44,IP65 Rated Operation Voltage: AC 230/440V,DC 440V
Socket Outlet: Customized Advantage: Corrosion Resistance,Compressive Strength,Moisture-proof
High Light:

63A Electrical Distribution Box

,

PE Portable Electrical Distribution Box

,

IP65 3 Phase Distribution Box

IP65 PE Waterproof Portable Electrical Distribution Box IEC standard







IP65 PE Waterproof Portable Electrical Distribution Box IEC standard 0





UK series protable power maintenance box is in line with relative IEC standards,which is for electrical network(50-60Hz,Voltage not higher than 660V).At the same time,they are with circuit protection like overload,short circuit and current leakage and provide the power outlets for electrical equipments.



These boxes are wildly used in oil,chemical industry,metallurgy,power plants,coal mines,machinery,textile,ports,docks and other industries,specifically for maintenance in the tunnel range of rail transit.



Boxes are made of PE material(polyethylene) which set many advantages in one:good finishing,corrosion resistance,compressive strength,waterproof,moisture-proof,anti-slip,high dielectric properties,good electrical insulation and long service life.



They are designed with transparent windows which is convenient and safe for operation.No need to open the doors.







Full range



 Rated insulation voltage  AC 400V (660V)
 Rated operation voltage  AC 230/400V, DC 440V
 Rated frequency  50Hz
 Protection class  IP44,IP65
 Single-loop Output Current  10A,16A,32A,63A,125A etc.
 Single-loop output voltage  20-25V, 40-50V, 100-130V, 200-250V, 380-480V, 500-660V
 Poles of output socket  1P+N+PE, 3P+PE, 3P+N+PE
 Applicable environment  temperature -30℃~+40℃,indoor & outdoor



IP65 PE Waterproof Portable Electrical Distribution Box IEC standard 1







Feature



1. The box is made of PE material by rolling molding.



2. Equipped with corresponding plug or connector, also can be equipped according to customer requirements.



3. Can adjust the socket type configuration and switch number according to the user's actual use environment requirements.



4. High temperature resistant sealing ring design, high waterproof performance, durable.



5. The color of the wire is strictly in accordance with the standards of different countries, with anti-falling screws, reasonable planning of the length of the wire, neat and beautiful.



6. Small area can be stacked multiple distribution boxes, safe and labor-saving.







Custom build options

Industrial distribution box can be customized to meet specific customer requirements.



The listed standard products can be equipped with different combinations of industrial switch socket or professional socket, separate RCCB and over-current protection or metering, if necessary.



For further information, please contact us.
