|Place of Origin:||China|
|Certification:||VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT|
|Minimum Order Quantity:||1000 pcs|
|Packaging Details:||Each unit packed in a individual box|
|Delivery Time:||20 days and depends on ordering quantity|
|Payment Terms:||T/T, L/C, D/P|
|Supply Ability:||100000 pcs per month|
|Certification:||CE||Advantage:||Safe And Reliable，waterproof|

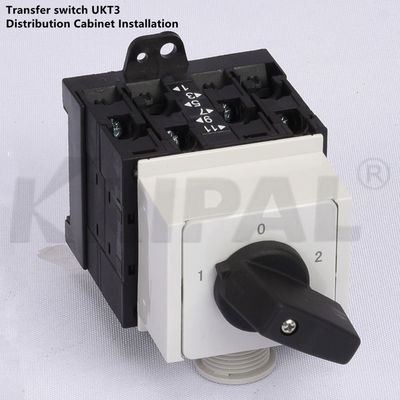

Waterproof 3 Phase Selector Switch,
440V 3 Phase Selector Switch,
IEC 3 Phase Rotary Switch
UKT sereis changeover switch is used in the circuits of AC 50Hz,rated voltage up to 440V,DC voltage up to 220V,rated current up to 100A,to not frequently switch on/off electrical circuits, transfer and control circuits,also it can directly control small capacity motor or be used for master control or electric meters. The switch is used widely in circuit control,test equipment, switch for motor,master control,welding machine and etc.
|Number of poles||1P,2P,3P,4P|
|Identification||VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT|
|Warranty||One and a half years|
|Advantage||special cam switch with excellent performance and easy configuration is safe and reliable to save installation time and cost.|
①Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.
②Control of stepping,suitable for any loads,with or without “O”position.
③Power supply switching or load switching.
④Starting of AC motor(for single-phase power supply with capacitor)
⑤Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4 steps,commutation or no commutation.
⑥Ammeter or voltmeter switching among three-phase circuits.
Suitable for safe and reliable maintenance switch or connecting various electrical loads and equipped with the shell of the main switch at this time,you can hang a few padlocks in the breaking part,as a measure to ensure personal safety,the breaking part is clearly visible and can not be automatically reset.
Proper installation ways
①Surface installation(insulation enclosure assembled)
②Parallel and level installation(fix in front of it)
③Rear installation(fix at the back of it,door linkage or cover linkage)
1.Possibility of multi-combination and safety of touch
Cam switch UKT provide 800 standard contacts combinations,their combination number is almost limitless, not only that,in the switch design process,safety and reliability in the first place,such as:equipped with the cover of the terminal in the line with VDE0106,to ensure the safety of the touch.
2.The full range: According to the classification power capacity, can provide the most economical solution for different projects; nameplate There are many different methods of installation, flexibility to meet the needs of specific applications.
3.Flexible switch functions
On-off switch:It can be used reliably in lighting equipment heating equipment and motor,also can be directly switched motor(AC-3).Their high on-off ability can ensure the work reliability at frequently making and breaking.
Control switch:For controlling the current loop,it simplifies sending instructions from a central control position.For example,starting a specified process from a central control room saves time and makes the production process clear.
|Lead Time||Normally 20 days after received your fund, but mostly depends on your quantity|
|Leading Port||Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly.|
|Trade Term||EXW, FOB, CIF as customer need|
|Payment Term||T/T 30% as deposit,and 70% before delivery.|
|Packaging||Neutral carton, or according to customer requirements|
|Shipping||By Air, by sea, by express|
Q:Are you factory?
A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two hours to Hangzhou by train, and one hour to Shanghai by air .Also very near to Wenzhou international Airport and Yueqing train station.
Q:Do you offer OEM service?
A:Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Zhejiang Kripal Electric Co., Ltd founded in 1992 is specialized in circuit breaker ,AC contactor , industrial plug and socket, weather protected switchgear, and others. With the repaid development in last 29years. KRIPAL act as one of the biggest manfactures in eleectrical industry in China.
With a wide marketing network ,the products are exported to Europe ,Amercia, Afric , South Asia,Hongkong , Macaw,Taiwan and othe areas and enjoy high reputation in the international market .
Welcome to Kripal!
Contact Person: Allen
