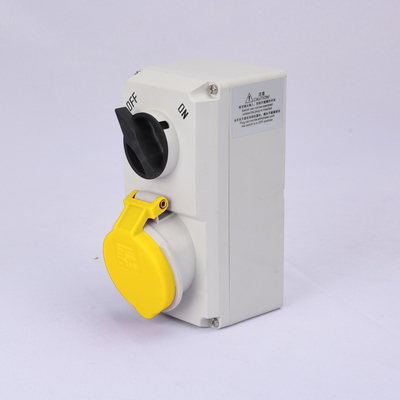

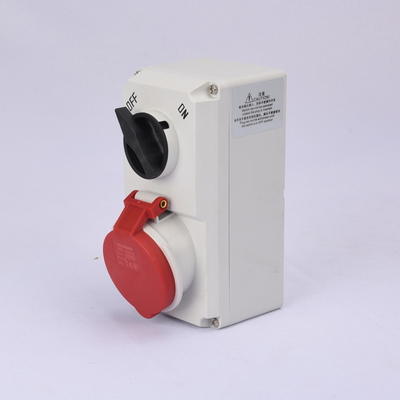

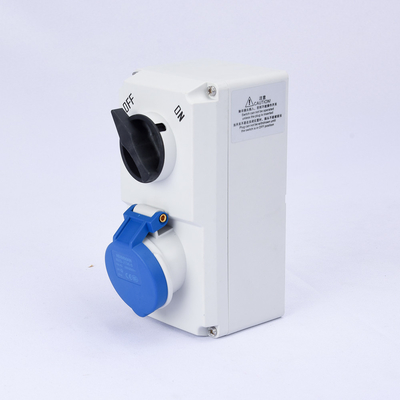

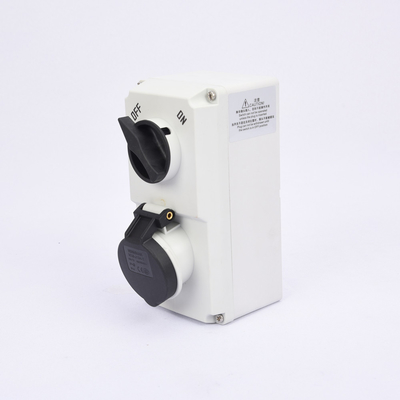

3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard

Product Details:

Place of Origin:	China
Brand Name:	KRIPAL
Certification:	CE
Model Number:	UKS J series

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	negotiable
Packaging Details:	Each unit packed in a individual box
Delivery Time:	20 days and depends on ordering quantity
Payment Terms:	T/T, L/C, D/P
Supply Ability:	50000 pcs per month

Contact Now

Detailed Product Description

Rated Current:	16A,32A	Material:	Nylon,PA,PC,Copper
Protection Degree:	IP44	Pole:	3P,4P,5P
Standard:	IEC Standard	Feature:	Safety,Waterproof,Durable
Highlight:	IP44 Interlocked Switch Socket , 3 Phase Interlocked Switch Socket , 16a Interlocked Socket

3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard

Current	Position	Voltage	Color	Poles	Model
16A	4h	110-130V	Yellow	2P+E	UKS-J134-4
	6h	220-250V	Blue	2P+E	UKS-J134-6
	9h	220-250V	Blue	3P+E	UKS-J144-9
	6h	380-415V	Red	3P+E	UKS-J144-6
	6h	380-415V	Red	3P+N+E	UKS-J154-6
	7h	500V	Black	3P+N+E	UKS-J154-7
32A	4h	110-130V	Yellow	2P+E	UKS-J234-4
	6h	220-250V	Blue	2P+E	UKS-J234-6
	9h	220-250V	Blue	3P+E	UKS-J244-9
	6h	380-415V	Red	3P+E	UKS-J244-6
	6h	380-415V	Red	3P+N+E	UKS-J254-6
	7h	500V	Black	3P+N+E	UKS-J254-7

Product	Interlocked Switch Socket
Rated current	16A,32A,
No. of poles	2P+E,3P+E,3P+N+E
Voltage	110V-130V;220V-250V; 380V- 415V;500V
Protection degree	IP44
Power type	Single Phase, Three Phase
Conductor cross-sectional area (mm2)	1.5-4(16A), 2.5-10(32A)
Material	NYLON,PA, PC, Copper
Color	110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black)

Product Feature

1.Safety, Environmental,Economic, Multi-function, Safe, Durable, Timesaving

2.Standard plug, Standard socket

3.Provide different series products for different environment

4.Resistance to severe weather and ageing

5.Good space stability and accuracy

6.Effectively prevent power outages and leakage

Product Applications

Applied to Power distribution equipment.

Applied to Port container terminal

Applied to Refrigerated container

Applied to Power systerm.

Applied to Construction site.

Applied to Large public space.

Applied to Transportation equipment

Certification

Service

1. Delivery time: 20 working days for bulk order and depend on ordering quantity

2. Strong production capacity and strict quality control system;

3. Your inquiry and problems related to our products or prices will be replied in 24 hours;

4. Well-trained and experienced staffs to answer all your inquires;

5. After-sale tracking service for all of our clients;

6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.

7. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)

Our company

Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
