| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | UKS series |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 50000 pcs per month |
| Rated Current: | 32A | Protection Degree: | IP67 |
|---|---|---|---|
| Pole: | 4P | Frequency: | 50/60Hz |
| Material: | Nylon,PA,PC,Copper | Feature: | Waterproof,Dustproof,Moisture-proof |
| High Light: | 32A 4 Pin Plug Socket,IP67 4 Pin Plug Socket,Refrigerated Container 32a Power Socket |
||
| Current | Position | Voltage | Color | Designation | Poles | Model |

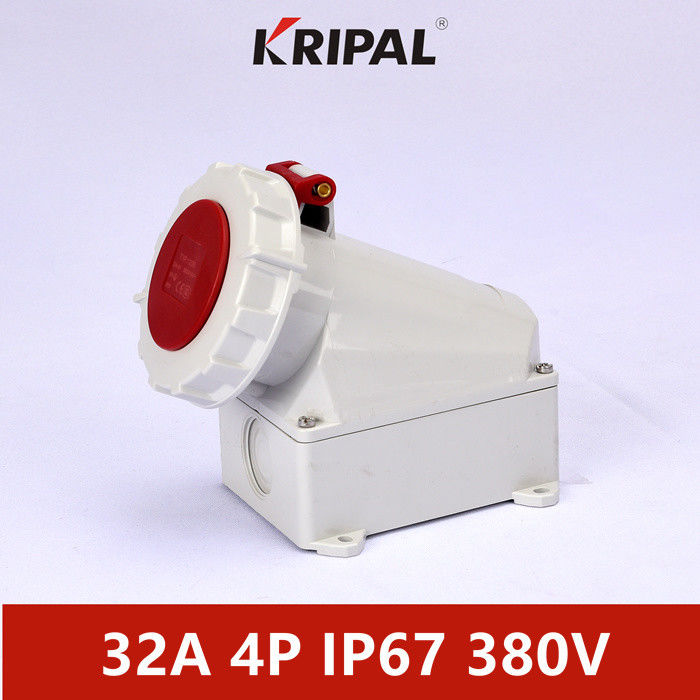

| 32A | 3h | 380-415V | Red | Socket | 3P+E | UKS-F246-3 |

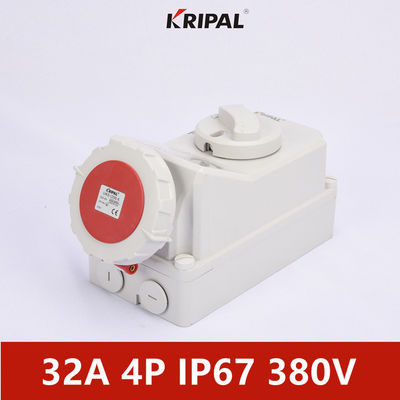

| Switched socket with mechanical interlock | UKS-I246-3 | |||||

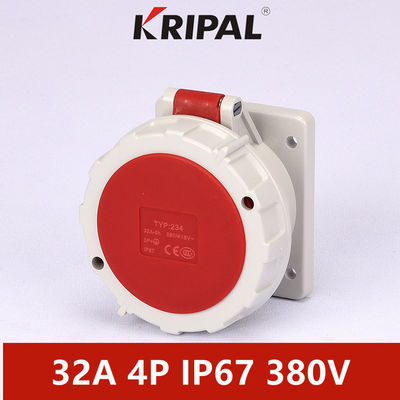

| Panel mounted socket | UKS-B246-3 | |||||

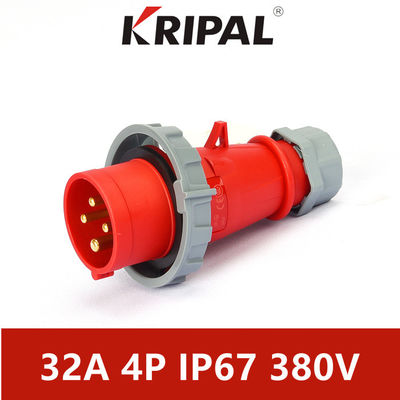

| Plug | UKS2-A246-3 | |||||

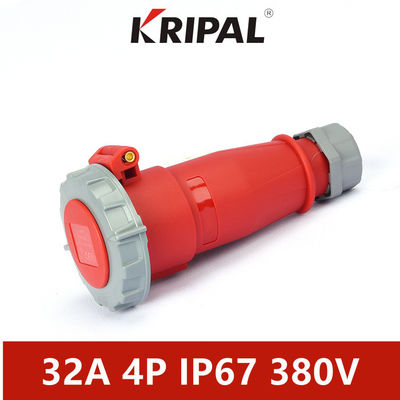

| Connector | UKS2-C246-3 |
In order to facilitate the power supply of the refrigerated container, the plug and socket are specially designed, which brings convenience to the operation and management of the refrigerated container, and makes the power supply more safe, quick and reliable.
Plug and socket is used to connect the power supply of the refrigerated container. The location of the refrigerated container determines the location of the plug and socket. It is generally placed on the open yard of the dock on land, and on the deck or bulkhead on the ship. Five requirements for plugs and sockets:
1.Must have water tightness, when the power is connected and not connected, foggy and rainy days or a short time is soaked in water, need to ensure that the water can not be.
2.The plug and the socket should have an interlocking device. Only when the automatic switch in the socket is disconnected can the plug be inserted. When the automatic switch in the socket is continuously powered, the plug cannot be pulled out.
3.The electrical performance of the plug and socket should meet the IEC standard, such as contact resistance, pressure resistance, dynamic stability, times of plug and unplug should meet the requirements.
4.The processing size of plug and socket should conform to ISO standard in order to reach the universal standard in the world.
5.Plugs and sockets must undergo strict tests before leaving the factory and have a certificate of qualification, otherwise they cannot leave the factory.
①PC plugs,sockets and couplings are constructed for extreme operating conditions.
It has the characteristics of easy installation, long life and high reliability.
②The housing and air inlet are made of high-grade nylon 66 plastic.
The material has excellent insulation performance, is not easy to break, durable, durable up to +120℃, oil, gasoline salt water resistance, almost no aging, very cold splash resistance.
③All units are not only compatible with the same system, but also fully compatible with other manufacturers of the same system unit, through the groove tongue with the polarity joint, and then through the movable cable clip easy installation, safe and reliable use.
Applied to Electricity industry.
Applied to Rail industry.
Applied to Chemical Industry.
Applied to Coal Industry.
Applied to Automotive Industry.
Applied to Shipbuilding Industry.
Applied to Container Dock.
Applied to Airport.
Applied to Large-scale Amusement Park.
Applied to Steel Industry.
Applied to Construction Industry.
Applied to Food Industry.
|
Protection |
IP44/IP67 |
|
Current |
16A, 32A, 63A, 125A, 250A, 420A |
|
Pins |
2P+E, 3P+E, 3P+N+E |
|
Voltage |
20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
|
PLUG & SOCKET |
Low voltage plug socket <50V |
|
Industrial plug, industrial socket |
|
|
Wall mounted socket, wall mounted plug |
|
|
Panel mounted socket, panel mounted plug |
|
|
Interlocked switched socket |
|
|
BOX |
Industrial portable socket box |
|
Industrial plastic socket box |
|
|
Power maintenance box (stainless) |
|
|
Power maintenance box (plastic) |
|
|
Industrial lighting box (plastic) |
|
|
Industrial lighting box (metal) |
|
|
Distribution box for exhibition box |
|
|
T. V / Film power distribution box |
|
|
Distribution box with power and compress air outlet |
|
|
Accessories |
Cap for 16A, 32A, 63A, 125A plug |
