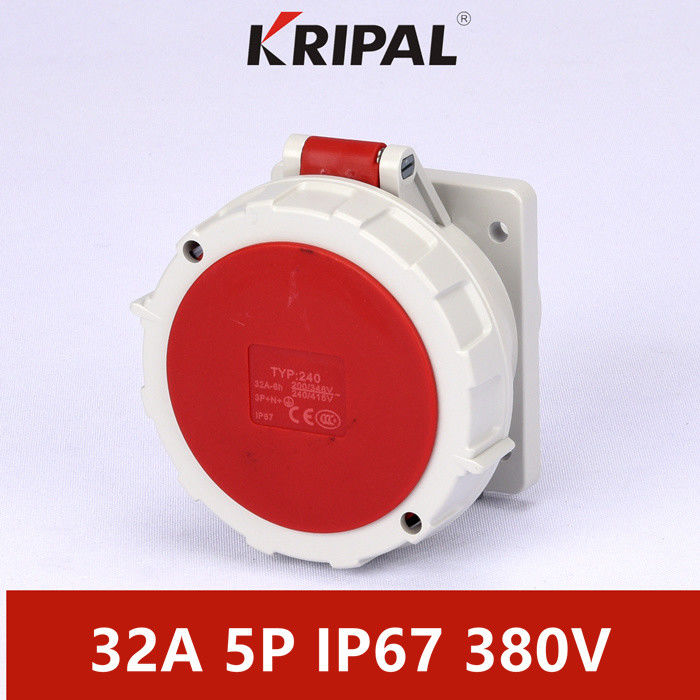

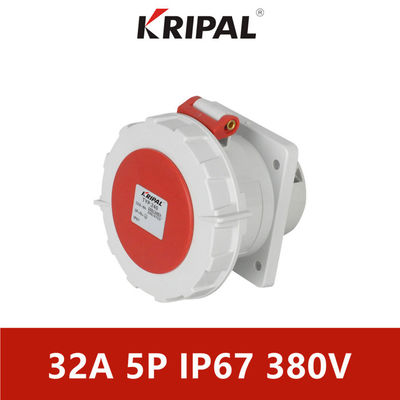

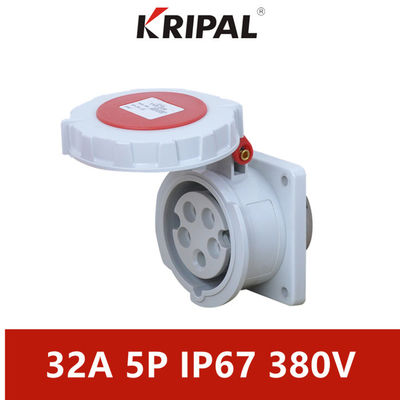

5P 32A IP67 Flange Size Panel Mounted Socket With Thread Lock
Product Summary
Product Details
5P Panel Mounted Socket
,32A Panel Mounted Socket
,IP67 IEC Panel Mount Socket
Product Description
5P 32A IP67 Flange size Panel Mounted Socket With Thread Lock
|
Current |
Dimensions(flange) |
Position |
Voltage |
Color |
Poles |
Model |
|
32A |
85*85mm |
4h |
110-130V |
Yellow |
2P+E |
UKS2-B236-4 |
|
6h |
220-250V |
Blue |
2P+E |
UKS2-B236-6 |
||
|
9h |
380-415V |
Red |
2P+E |
UKS2-B236-9 |
||
|
4h |
110-130V |
Yellow |
3P+E |
UKS2-B246-4 |
||
|
9h |
220-250V |
Blue |
3P+E |
UKS2-B246-9 |
||
|
6h |
380-415V |
Red |
3P+E |
UKS2-B246-6 |
||
|
4h |
110-130V |
Yellow |
3P+N+E |
UKS2-B256-4 |
||
|
9h |
220-250V |
Blue |
3P+N+E |
UKS2-B256-9 |
||
|
6h |
380-415V |
Red |
3P+N+E |
UKS2-B256-6 |
Specifications
|
Product |
Industrial Socket |
|
Rated current |
16A,32A,63A |
|
No. of poles |
2P+E, 3P+E 3P+N+E |
|
Voltage |
110V;220V-250V; 380V-415V |
|
Protection degree |
IP67 |
|
Power type |
Single Phase, Three Phase |
|
Conductor cross-sectional area (mm2) |
1.5-4(16A), 2.5-10(32A) |
|
Material |
NYLON, PA, PC, copper |
|
Color |
110V(yellow) 220V,230V(blue) |
Product Feature
1. Safe and Reliable
①Rated voltage is indicated by the color of the shell, which is clear at a glance
②The diameter pole number of the grounding contact of the same specification product is different to prevent accidental insertion
③Protection against electric shock
④High protection level:IP44 andIP67
⑤With a keeping device, after plugging each other to prevent falling off ,so that the plug and socket can get the greatly improved reliability.
2.Durable
①Good mechanical properties, the shell is made of high quality engineering plastics, its high strength and impact resistance of rubber and plastic are anti-aging, not only can be used in the indoor, can also be used in the outdoor, durable components.
②Heat-resisting and Resistance to heat, enclosure and internal insulating parts are heat resistant
③Resistance to pull and plug under longstanding usage.
3. Strong universality
General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.
Product Applications
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
Certification
We can provide full range of industrial plug socket:
|
Protection |
IP44/IP67 |
|
Current |
16A, 32A, 63A, 125A, 250A, 420A |
|
Pins |
2P+E, 3P+E, 3P+N+E |
|
Voltage |
20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
|
Plug & Socket |
Low voltage plug socket <50V |
|
Industrial plug, industrial socket |
|
|
Wall mounted socket, wall mounted plug |
|
|
Panel mounted socket, panel mounted plug |
|
|
Interlocked switched socket |
|
|
BO X |
Industrial portable socket box |
|
Industrial plastic socket box |
|
|
Power maintenance box (stainless) |
|
|
Power maintenance box (plastic) |
|
|
Industrial lighting box (plastic) |
|
|
Industrial lighting box (metal) |
|
|
Distribution box for exhibition box |
|
|
T. V / Film power distribution box |
|
|
Distribution box with power and compress air outlet |
|
|
Accessories |
Cap for 16A, 32A, 63A, 125A plug |
FAQ
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q:What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q:What is your terms of delivery?
A: EXW, FOB, CIF.
Q:How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
