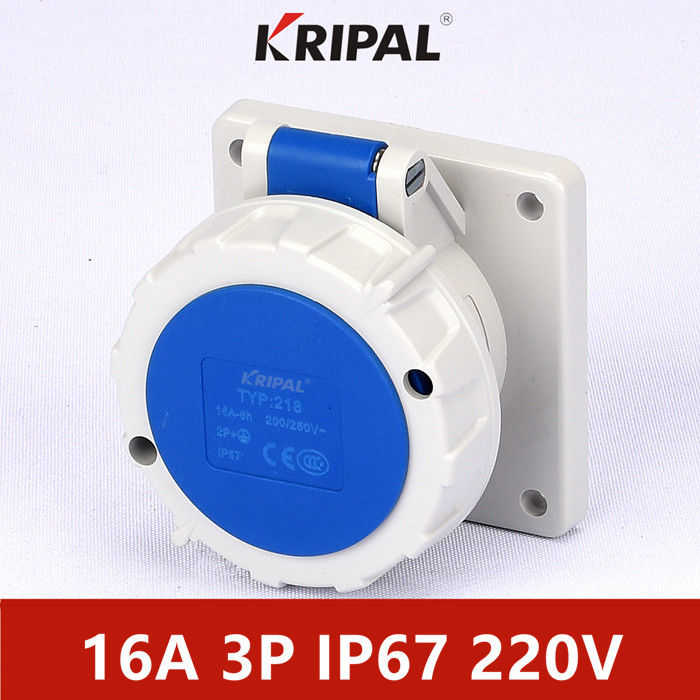

IP67 3 Pole 16A Single Phase Panel Mounted Socket IEC standard
Product Summary
Product Details
16A IEC Panel Mount Socket
,130V IEC Panel Mount Socket
,IP67 Panel Mount Power Socket
Product Description
IP67 3 Pole 16A Single Phase Panel Mounted Socket IEC standard
| Current | Dimensions(flange) | Position | Voltage | Color | Poles | Model |
| 16A | 75*75mm | 4h | 110-130V | Yellow | 2P+E | UKS-B136-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-B136-6 | ||
| 9h | 380-415V | Red | 2P+E | UKS-B136-9 | ||
| 4h | 110-130V | Yellow | 3P+E | UKS-B146-4 | ||
| 9h | 220-250V | Blue | 3P+E | UKS-B146-9 | ||
| 6h | 380-415V | Red | 3P+E | UKS-B146-6 | ||
| 4h | 110-130V | Yellow | 3P+N+E | UKS-B156-4 | ||
| 9h | 220-250V | Blue | 3P+N+E | UKS-B156-9 | ||
| 6h | 380-415V | Red | 3P+N+E | UKS-B156-6 |
Product Feature
1. Safe and Reliable
①The rated voltage is indicated by the color of the shell, which is clear at a glance.
②The grounding contact diameter and pole number of the products of the same specification are different to prevent mis-insertion.
③Protection against electric shock.
④It is equipped with storage devices to prevent each other from falling off after plugging and unplugging, which greatly improves the reliability of plugs and sockets.
2.Durable
① good mechanical properties, the shell made of high quality plastic, its high strength and impact resistance are rubber aging, not only can be used indoors, can also be used in outdoor durable.
② resistant and heat-resistant, heat-insulating member and the inner housing.
③ Long-term use and plug-in resistance.
3. Strong universality
General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.
Product Applications
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
Certification
We can provide full range of industrial plug socket:
|
Protection |
IP44/IP67 |
|
Current |
16A, 32A, 63A, 125A, 250A, 420A |
|
Pins |
2P+E, 3P+E, 3P+N+E |
|
Voltage |
20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
|
Plug & Socket |
Low voltage plug socket <50V |
|
Industrial plug, industrial socket |
|
|
Wall mounted socket, wall mounted plug |
|
|
Panel mounted socket, panel mounted plug |
|
|
Interlocked switched socket |
|
|
Box |
Industrial portable socket box |
|
Industrial plastic socket box |
|
|
Power maintenance box (stainless) |
|
|
Power maintenance box (plastic) |
|
|
Industrial lighting box (plastic) |
|
|
Industrial lighting box (metal) |
|
|
Distribution box for exhibition box |
|
|
T. V / Film power distribution box |
|
|
Distribution box with power and compress air outlet |
|
|
Accessories |
Cap for 16A, 32A, 63A, 125A plug |
