Home ProductsIndustrial Power Socket

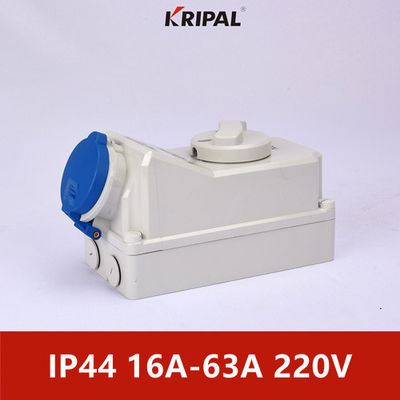

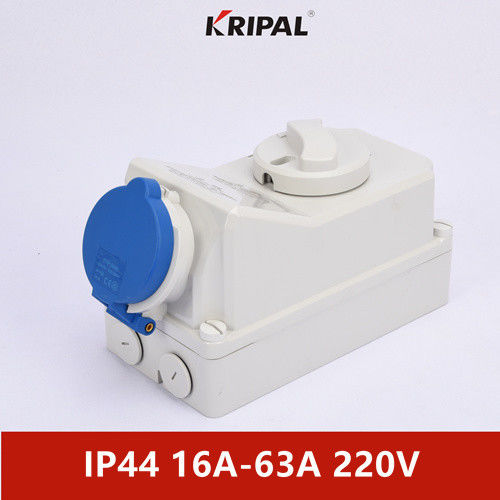

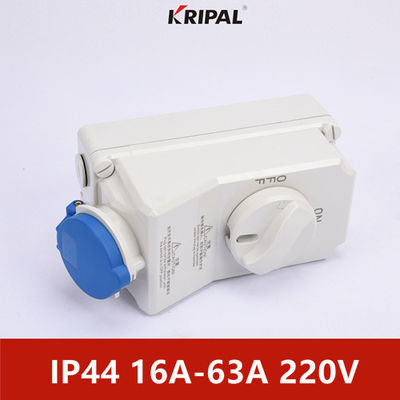

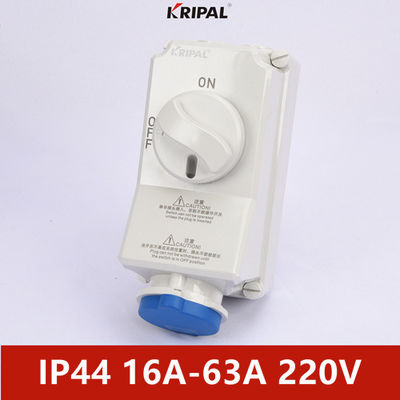

220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard

220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard

  • 220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard
  • 220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard
  • 220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard
  • 220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard
220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKS-I334-6
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Rated Current: 16A,32A,63A No. Of Poles: 3P,4P,5P
Voltage Range: 110V,220V,380V Protection Degree: IP44
Material: Nylon,PA,PC,Copper Color: Blue,Red,Yellow
Standard: EN/IEC60309-2, DIN VDE 0623 Advantages: Waterproof, Dust-proof, Impact Resistance
High Light:

IP44 Mechanical Interlock Switch Sockets

,

63A Safety Interlock Switch Sockets

220V IP44 Waterproof Interlocked Switch Sockets IEC Standard





 Product

 Interlocked Switch Socket

 Rated current

 16A,32A,63A

 No. of poles

 2P+E, 3P+E 3P+N+E

 Voltage

 110V-130V;220V-250V; 380V-415V

 Protection degree

 IP44

 Power type

 Single Phase, Three Phase

 Conductor cross-sectional area (mm2)

 1.5-4(16A), 2.5-10(32A),6-25(63A)

 Material

 NYLON,PA, PC, Copper

 Color

 110V(yellow) 220V,230V(blue)
 380V,415V,440V(red) 500V(black)



Current Position Voltage Color Poles Model
16A 6h 220-250V Blue 2P+E UKS-I134-6
6h 380-415V Red 3P+E UKS-I144-6
6h 380-415V Red 3P+N+E UKS-I154-6
32A 6h 220-250V Blue 2P+E UKS-I234-6
6h 380-415V Red 3P+E UKS-I244-6
6h 380-415V Red 3P+N+E UKS-I254-6
63A 6h 220-250V Blue 2P+E UKS-I334-6
6h 380-415V Red 3P+E UKS-I344-6
6h 380-415V Red 3P+N+E UKS-I354-6



220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard 0







Product Feature



1.Safety, Environmental,Economic, Multi-function, Safe, Durable, Timesaving.



2.Standard plug, Standard socket.



3.Provide different series products for different environment.



4.Resistance to severe weather and ageing.



5.Good space stability and accuracy.



6.Effectively prevent power outages and leakage.







Product Applications

Applied to Power distribution equipment.

Applied to Port container terminal

Applied to Refrigerated container

Applied to Power systerm.

Applied to Construction site.

Applied to Large public space.

Applied to Transportation equipment







Certification

220V IP44 Waterproof Mechanical Interlock Switch Sockets IEC Standard 1







Packaging & Delivery

 Lead Time  Normally 20 days after received your fund, but mostly depends on your   quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading port please   kindly advise and the extra inland transportation freight will be added   accordingly.
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery.
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express







Advantage

1. More than 30 years manufacturer experience.



2. NO MOQ under our KRIPAL brand.



3. OEM and ODM are available.



4. Product quality guarantee for one and a half years and the best after-service.



5. Various shipping methods and payment method for your choice.
