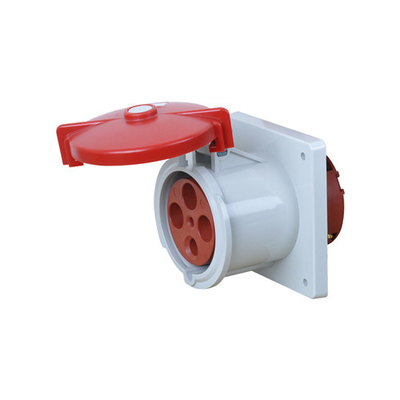

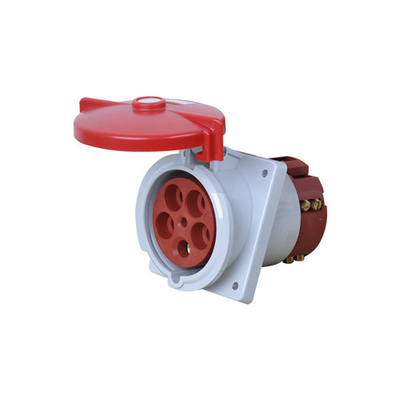

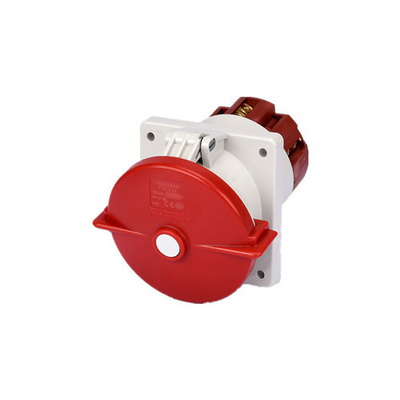

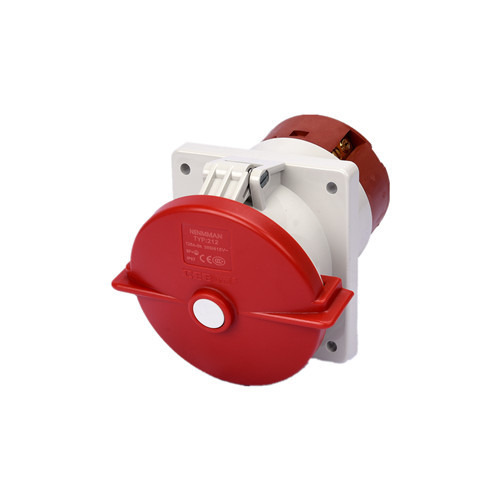

125A 380V IP67 Three Phase Industrial Panel Mount Power Socket

125A 380V IP67 Three Phase Industrial Panel Mount Power Socket

  • 125A 380V IP67 Three Phase Industrial Panel Mount Power Socket
  • 125A 380V IP67 Three Phase Industrial Panel Mount Power Socket
  • 125A 380V IP67 Three Phase Industrial Panel Mount Power Socket
  • 125A 380V IP67 Three Phase Industrial Panel Mount Power Socket
125A 380V IP67 Three Phase Industrial Panel Mount Power Socket
Product Details:
Place of Origin: CHINA
Brand Name: KRIPAL
Certification: CE
Model Number: UKS-B4561-6
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T,L/C,D/P
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Type: Electrical Socket Rated Current: 125A
IP Rating: IP67 Rated Voltage: 110V,220V,380V
Material: Nylon,PA,PC,Copper Frequency: 50/60Hz
Advantage: Waterproof,Dustproof,Damp-proof
High Light:

IP67 Panel Mount Power Socket

,

125 Amp Panel Mount Power Socket

125A 380V IP67 Three Phase Industrial Panel Mount Power Socket







Current Position Voltage Color Poles Model
125A 4h 110-130V Yellow 2P+E UKS-B4361-4
6h 220-250V Blue 2P+E UKS-B4361-6
9h 380-415V Red 2P+E UKS-B4361-9
4h 110-130V Yellow 3P+E UKS-D4461-4
9h 220-250V Blue 3P+E UKS-B4461-9
6h 380-415V Red 3P+E UKS-B4461-6
4h 110-130V Yellow 3P+N+E UKS-B4561-4
9h 220-250V Blue 3P+N+E UKS-B4561-9
6h 380-415V Red 3P+N+E UKS-B4561-6



 Product

 Industrial socket

 Rated current

 125A

 No. of poles

 2P+E, 3P+E, 3P+N+E

 Voltage

 110V-130V;220V-250V; 380V-415V

 Protection degree

 IP67

 Power type

 Single Phase, Three Phase

 Conductor cross-sectional area (mm2)

 1.5-4(16A), 2.5-10(32A)

 Material

 NYLON, PA, PC, Copper

 Color

 110V(yellow) 220V,230V(blue)
 380V,415V,440V(red) 500V(black)



125A 380V IP67 Three Phase Industrial Panel Mount Power Socket 0






Product Feature

1.Safe and Reliable

①Rated voltage is represented by housing color, easy to distinguish

②Protection against electric shock

③High protection level. IP44 anti-splash type, IP67 anti-immersion type and so on

④With a keeping device, after plugging each other to prevent falling off ,so that the plug and socket can get the greatly improved reliability.



2.Durable

①Good mechanical properties, the shell is made of high quality engineering plastics, its high strength and impact resistance of rubber and plastic are anti-aging, not only can be used in the indoor, can also be used in the outdoor, durable components.

②Heat-resisting and Resistance to heat, enclosure and internal insulating parts are heat resistant

③Resistance to pull and plug under longstanding usage.



3. Strong universality

General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses



125A 380V IP67 Three Phase Industrial Panel Mount Power Socket 1125A 380V IP67 Three Phase Industrial Panel Mount Power Socket 2







Product Applications

Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.







Certification

125A 380V IP67 Three Phase Industrial Panel Mount Power Socket 3







Service

1. Delivery time: 20 working days for bulk order and depend on ordering quantity
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.
