| Place of Origin: | CHINA |
| Brand Name: | KRIPAL |
| Certification: | CE |
| Model Number: | UKS-F356-6 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T,L/C, D/P |
| Supply Ability: | 50000 pcs per month |
| IP Rating: | IP67 | Material: | Nylon,PA,PC,Copper |
|---|---|---|---|
| Frequency: | 50/60Hz | Rated Current: | 63A |
| Standard: | IEC Standard | Feature: | Waterproof,Dustproof,Impact Resistance |
| High Light: | 63A Socket Wall Mount,230V Socket Wall Mount,3Pin IP67 Socket Wall Mount |
||
| Current | Position | Voltage | Color | Poles | Model |
| 63A | 4h | 110-130V | Yellow | 2P+E | UKS-F336-4 |
| 6h | 220-250V | Blue | 2P+E | UKS-F336-6 | |
| 9h | 380-415V | Red | 2P+E | UKS-F336-9 | |
| 4h | 110-130V | Yellow | 3P+E | UKS-F346-4 | |
| 9h | 220-250V | Blue | 3P+E | UKS-F346-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-F346-6 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-F356-4 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-F356-9 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-F356-6 |

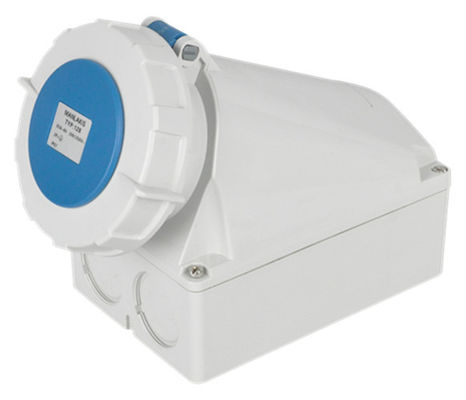

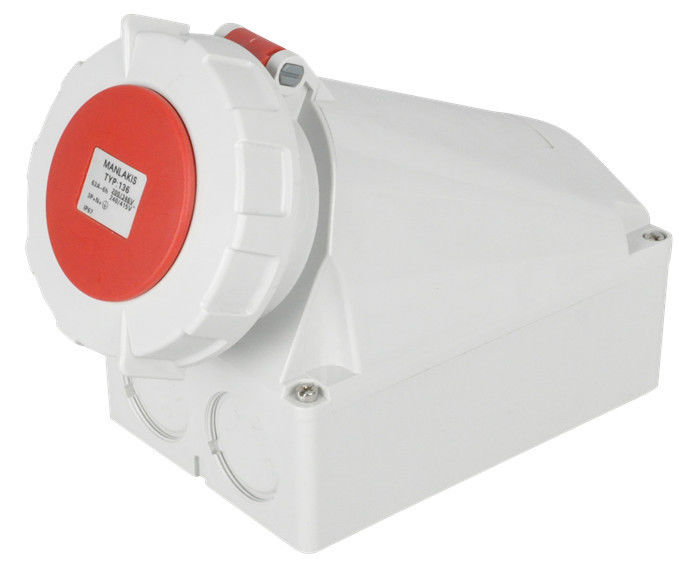

| Product | Industrial Socket |
| Rated current | 63A |
| No. of poles | 2P+E,3P+E,3P+N+E |
| Voltage | 110V;220V-250V; 380V-415V |
| Protection degree | IP67 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON, PA, PC, copper |
| Color | 110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black) |
1.Safe and Reliable
①Rated voltage is represented by housing color, easy to distinguish
②Protection against electric shock
③High protection level. IP44 anti-splash type, IP67 anti-immersion type and so on
④With a keeping device, after plugging each other to prevent falling off ,so that the plug and socket can get the greatly improved reliability.
2.Durable
①Good mechanical properties, the shell is made of high quality engineering plastics, its high strength and impact resistance of rubber and plastic are anti-aging, not only can be used in the indoor, can also be used in the outdoor, durable components.
②Heat-resisting and Resistance to heat, enclosure and internal insulating parts are heat resistant
③Resistance to pull and plug under longstanding usage.
3. Strong universality
General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| Plug & Socket | Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| Box | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q:What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q:What is your terms of delivery?
A: EXW, FOB, CIF.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
