Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard

Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard

  • Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard
  • Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard
  • Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard
  • Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard
Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard
Product Details:
Place of Origin: CHINA
Brand Name: KRIPAL
Certification: CE
Model Number: UKS-F136-6
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T,L/C, D/P
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Type: Electrical Socket Rated Current: 16A,32A
Frequency: 50/60Hz Rated Voltage: 110V,220V,380V
IP Rating: IP67 Material: Nylon,PA,PC,Copper
Advantage: Waterproof,Dustproof,Damp-proof
High Light:

230V 16A Wall Mounted Socket

,

PA 16A Wall Mounted Socket

,

Dustproof 16A Wall Mounted Socket

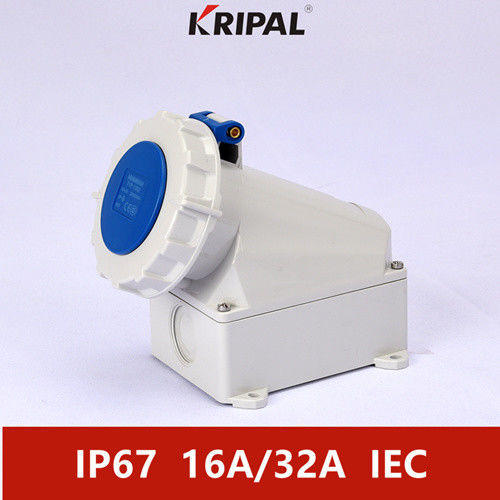

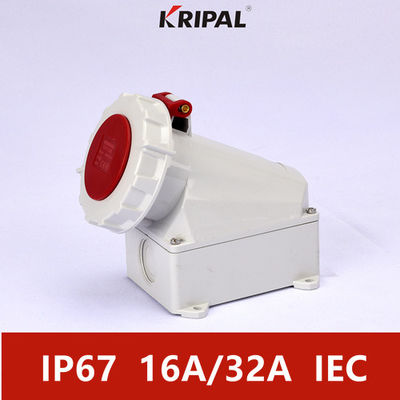

Dustproof IP67 230V 16A Wall Mounted Socket IEC Standard







Current Position Voltage Color Poles Model
16A 4h 110-130V Yellow 2P+E UKS-F136-4
6h 220-250V Blue 2P+E UKS-F136-6
6h 380-415V Red 3P+E UKS-F146-6
9h 380-415V Red 3P+N+E UKS-F156-6
32A 4h 110-130V Yellow 3P+E UKS-F246-4
6h 220-250V Blue 2P+E UKS-F236-6
9h 220-250V Blue 3P+E UKS-F246-9
6h 380-415V Red 3P+E UKS-F246-6
6h 380-415V Red 3P+N+E UKS-F256-6



 Product  Industrial Socket
 Rated current  16A,32A
 No. of poles  2P+E,3P+E,3P+N+E
 Voltage  110V:220V-250V; 380V-415V
 Protection degree  IP67
 Power type  Single Phase, Three Phase
 Conductor cross-sectional area (mm2)  1.5-4(16A), 2.5-10(32A)
 Material  NYLON, PA, PC, copper
 Color  110V(yellow) 220V,230V(blue)
 380V,415V,440V(red) 500V(black)





Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard 0







Product Feature

1. Safe and Reliable

①Rated voltage is represented by housing color, easy to distinguish

②Protection against electric shock

③High protection level. IP44 anti-splash type, IP67 anti-immersion type and so on

④With a keeping device, after plugging each other to prevent falling off ,so that the plug and socket can get the greatly improved reliability.


2.Durable

①Good mechanical properties, the shell is made of high quality engineering plastics, its high strength and impact resistance of rubber and plastic are anti-aging, not only can be used in the indoor, can also be used in the outdoor, durable components.

②Heat-resisting and Resistance to heat, enclosure and internal insulating parts are heat resistant

③Resistance to pull and plug under longstanding usage.

3.Strong universality
General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.







Product Applications

Industrial plug and socket,connector is a new generation connector appratus for power connecting,has the feature such as security & reliability. They are used widly in the place such as steel smelt,petrochemical processing,electric power,electronic,railway,building ground,airport,mine.







Certification

Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard 1Dustproof IP67 230V 16A Industrial Wall Mounted Socket IEC Standard 2







We can provide full range of industrial plug socket:

 Protection  IP44/IP67
 Current  16A, 32A, 63A, 125A, 250A, 420A
 Pins  2P+E, 3P+E, 3P+N+E
 Voltage  20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
 Plug & Socket  Low voltage plug socket <50V
 Industrial plug, industrial socket
 Wall mounted socket, wall mounted plug
 Panel mounted socket, panel mounted plug
 Interlocked switched socket
 Box  Industrial portable socket box
 Industrial plastic socket box
 Power maintenance box (stainless)
 Power maintenance box (plastic)
 Industrial lighting box (plastic)
 Industrial lighting box (metal)
 Distribution box for exhibition box
 T. V / Film power distribution box
 Distribution box with power and compress air outlet
 Accessories  Cap for 16A, 32A, 63A, 125A plug







Packaging & Delivery

 Lead Time  Normally 20 days after received your fund, but mostly depends   on your quantity
 Leading Port  Ningbo or Shanghai by sea or by air. If any other loading port   please kindly advise and the extra inland transportation freight   will be added accordingly.
 Trade Term  EXW, FOB, CIF as customer need
 Payment Term  T/T 30% as deposit,and 70% before delivery.
 Packaging  Neutral carton, or according to customer requirements
 Shipping  By Air, by sea, by express







Service


1. Strong production capacity and strict quality control system;

2. Well-trained and experienced staffs to answer all your inquires;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.







Our company

Zhejiang kripal Electric Co., Ltd. is a national high-tech enterprise specializing in R & D, production and sales. Our products mainly include: small, molded case circuit breakers, AC contactors, building electrical, outdoor waterproof, control components, industrial plugs and sockets, etc.



The company was founded in 1992, after 30 years of vigorous development, the existing plant area of more than 15000 square meters, more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives. The products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, and obtained the national 3C, ISO9001 quality certification.



The company adheres to the enterprise policy of "management, independent innovation, coordination and cooperation, brand supremacy" and abides by the promise of "virtue in the world". Practice the core values of "win-win cooperation with customers, common prosperity with employees, benefit creation for the company and harmonious contribution to society", and strive for the mission of "strive to realize the dream of professional electrical world brand".



We sincerely welcome new and old customers at home and abroad to contact us and create a better future.
