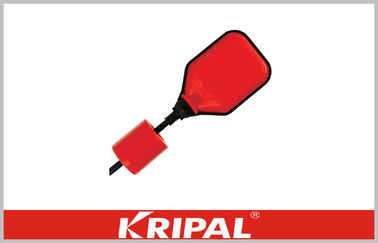

UKY1 Red Trapezium Cable 220V Septic Pump Switch 1/2/3/4/5/6/7/8/9/10M

UKY1 Red Trapezium Cable 220V Septic Pump Switch 1/2/3/4/5/6/7/8/9/10M

Characteristics

A.The product will prevent water from over flowing in pool, water tower and water box, which may result in waste. Besides, it can protect water pimp against overload operation that may damage water pump.

B.The product saves time for users. After connecting with power, it can manage and control the water without people.

C.Negotiating with us for the length of temperature-resistant wire-bar.

Performance and characteristic

1.Simple construction, reliable performance

The product can output stable and reliable switch control signal of “making” , “breaking” without any fault action, so its reliability is very high and anti-interference is strong.

2.Study and durable,need not maintain

The product can be used for a long time after it being installed. Almost no maintenance and repairing problem would occur during its operation period.

3.Easy installation method, convenient adjustment method.

The liquid level control scope can be adjusted at will with the locating piece moving up and down. Only one screw id needed to secure the signal cable to finish installation.

4.Wide application scope, strong generality

The product applies to branch water,sewage,acid-base solution of less than medium concentration, oils and situations requiring no pollution (for example food and drinks industry),diesel oil gasification kitchen range, and automatic fuel feeding.

5.Simple circuit, economical and practical

Operation voltage is 220V, and current can be up to 10 KA. The applied circuit of the product is simple, so application cost is very low.

Instruction for installation

May be used for direct level control in accordance with product electrical specifications.

In the case of approved products, the ground wire will always be included and the ground wire sheath will always be yellow/green.

In this case,this two remaining wires are supplied for “high closure” or, specific request, “low closure”.

Electrical connections

Use wires: “Black” and “Blue”

With these contacts the regulator Closes when down

Opens when up.

Use wires: “Black” and “Brown”

With these contacts the regulator Closes when down

Opens when up.

Installation of counter weight

Insert the cable in the counterweight, from the conical part and rotate, thus causing the plastic ring in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver). The ring should then be positioned in the point where it is desired to block the counterweight.

Force the counterweight on the ring by rotating it, using a slight pressure.

The counterweight is furnished only on request.

Avoid joints in the level regulator cable. Never immerse possible cable joints in the water.

Application

The product it applies in industrial and mining enterprises and civil architecture. And it is the equipment which controls pool,water tower, water box,etc. Automatically. It has the advantages of sensitive response, accurate control, novelty and practically, so it is the necessary water supply product of factories, hotels, flats, buildings, houses and so on high buildings.

The water level controller should be installed parallelly inside the pool. Add, a sealed terminal box is supplied inside the water level switch, and terminals are installed inside the box with locating piece hanging in temperature resistant wire. After the water level switch being connected with power, and when water level decreases to 1/2 lower locating piece, the mercoid switch will automatically connect with power supply and start water pump cooperate. When water level increases to 1/2 upper locating piece, the mercoid switch will cut off power automatically. You can set the height of water level through the upper locating piece and lower locating piece by yourself, so the product can guarantee the water flows continuously.
