Place of Origin: | China |
Brand Name: | KRIPAL |
Certification: | CE |
Model Number: | UKB1-63/1/C curve series |
Minimum Order Quantity: | 240 pcs |
---|---|
Price: | negotiable |
Packaging Details: | 12 poles packed in one small box and then in carton |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 200000 pcs per month |
Breaking Capacity: | 6 KA / 4.5KA | Poles Available: | 1P |
---|---|---|---|
Ampere Range: | 1A.3A,6A,10A,16A,20A,25A,32A,40A,50A,63A | Voltage: | AC230/400V |
Curve: | B; C; D | Patent: | Design Patent |
High Light: | small circuit breaker,micro circuit breaker |

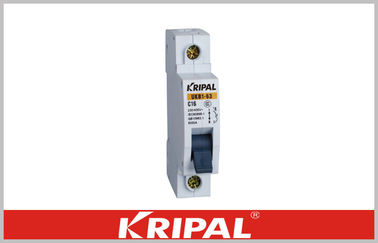

UKB1-63/1P 6KA / 4.5KA Mini Circuit Breaker 18mm , Small Circuit Breaker
KRIPAL has the design patent for these items
Description:
UKB1 series MCB is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. Its basic function is to detect a fault condition and interrupt current flow. Unlike fuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. Circuit breakers are made in various sizes, from small devices that protect an individual household appliance up to large switchgear designed to protect high voltage circuits feeding an entire city.
Features:
1. Protection against both overload and short circuit
2. High short-circuit capacity
3. Contact position indication
4. Applicable to terminal and pin/fork type busbar connection
5. Easy mounting onto 25&below mm DIN rail
UKB1-63/1P 6KA / 4.5KA Mini Circuit Breaker 1/3/6/10/16/20/25/32/40/50/63A CURVE:B,C,D 18mm
Specitifcation:
Type | UKB1-63 | Unit | |
Electrical features | Rated current In | 1.3, 6, 10, 16, 20, 25, 32, 40, 50, 63 | A |
Poles | 1 | P | |
Rated voltage Ue | 230/400 | V | |
Insulation voltage Ui | 500 | V | |
Rated frequency | 50/60 | Hz | |
Rated breaking capacity | 6, 4.5 | KA | |
Rated impulse withstand voltage (1.2/50) Uimp | 4000 | V | |
Dielectric test voltage at ind. Freq. for 1 min | 2 | Kv | |
Pollution degree | 2 | / | |
Thermo-magnetic release characteristic | B, C, D | / | |
Mechanical features | Electrical life | 4000 | t |
Mechanical life | 10000 | t | |
Protection degree | IP20 | / | |
Reference temperature for setting of thermal element | 30 | º C | |
Ambient temperature (with daily average≤ 35º C) | -5~+40 (special application please refer to temperature compensation correction) | º C | |
Storage temperature | -25~+70 | º C |
Circuit diagram
UKB1-63/1P 6KA / 4.5KA Mini Circuit Breaker 1/3/6/10/16/20/25/32/40/50/63A CURVE:B,C,D 18mm
Order NO.
Current (A) | Breaking capacity (KA) | B Curve | C Curve | D Curve |
1A | 6KA | UKB1-63/1/B1 | UKB1-63/1/C1 | UKB1-63/1/D1 |
3A | 6KA | UKB1-63/1/B3 | UKB1-63/1/C3 | UKB1-63/1/D3 |
6A | 6KA | UKB1-63/1/B6 | UKB1-63/1/C6 | UKB1-63/1/D6 |
10A | 6KA | UKB1-63/1/B10 | UKB1-63/1/C10 | UKB1-63/1/D10 |
16A | 6KA | UKB1-63/1/B16 | UKB1-63/1/C16 | UKB1-63/1/D16 |
20A | 6KA | UKB1-63/1/B20 | UKB1-63/1/C20 | UKB1-63/1/D20 |
25A | 6KA | UKB1-63/1/B25 | UKB1-63/1/C25 | UKB1-63/1/D25 |
32A | 6KA | UKB1-63/1/B32 | UKB1-63/1/C32 | UKB1-63/1/D32 |
40A | 6KA | UKB1-63/1/B40 | UKB1-63/1/C40 | UKB1-63/1/D40 |
50A | 4.5KA | UKB1-63/1/B50 | UKB1-63/1/C50 | N |
63A | 4.5KA | UKB1-63/1/B63 | UKB1-63/1/C63 | N |
Declaration:
KRIPAL is a factory with more than 25 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.
Why not get goods from us directly?
Contact Person: Allen
