Place of Origin: | China |
Brand Name: | KRIPAL |
Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
Model Number: | UKP series |
Minimum Order Quantity: | 1000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Each unit packed in a individual box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C, D/P |
Supply Ability: | 100000 pcs per month |
Pole: | 3P,4P | Rated Current: | 80A |
---|---|---|---|
Protection Degree: | IP65 | Frequency: | 50/60Hz |
Material: | PC,Copper | Advantage: | Waterproof,Dustproof,Safety |

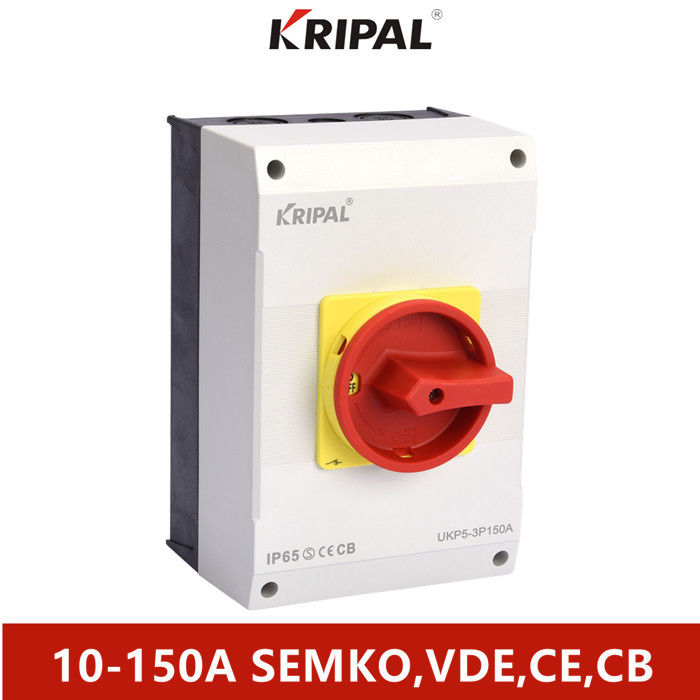

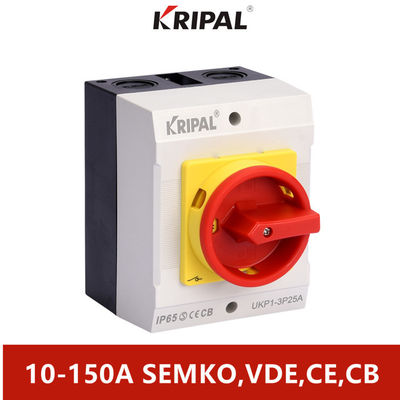

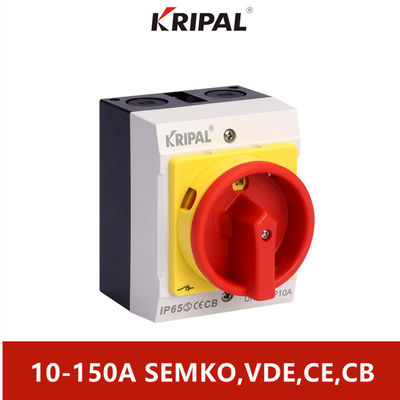

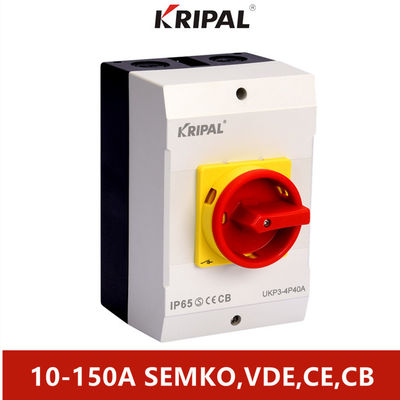

High Light: | 3P Cabinet Electric Isolator Switch,IP65 Box Electric Isolator Switch,80A 4 Pole Isolator |
1.Rated insulation voltage 230V-440V, current 10A~150A,commonly used in single-phase or three-phase AC system;
2.IP65 box body design, with the import of the sealing strip of the safety seal and dust,waterproof, anti ultraviolet materials;
3.Switch rotating operator (knob) with three lock position, reliable to prevent misuse;
4.Suitable for different cable connectors: M25, M20, M16 and M12, optional waterproof cable connectors;
5.Large wiring operation space, the product is fixed on the box body, the connection is still convenient;
6.Adequate internal space, good heat dissipation effect;
7.Large contrast color design, easy to distinguish;
8.Protection degree: IP65.
Reference Model
Current(A) | Rated Voltage(V) | Model | |
3P | 4P | ||
10 | 230-440V | UKP0-310 | UKP0-410 |
16 | 230-440V | UKP0-316 | UKP0-416 |
20 | 230-440V | UKP0-320 | UKP0-420 |
20 | 230-440V | UKP1-320 | UKP1-420 |
25 | 230-440V | UKP1-325 | UKP1-425 |
32 | 230-440V | UKP1-332 | UKP1-432 |
32 | 230-440V | UKP3-332 | UKP3-432 |
40 | 230-440V | UKP3-340 | UKP3-440 |
50 | 230-440V | UKP3-350 | UKP3-450 |
63 | 230-440V | UKP3-363 | UKP3-463 |
63 | 230-440V | UKP5-363 | UKP5-463 |
80 | 230-440V | UKP5-380 | UKP5-480 |
100 | 230-440V | UKP5-3100 | UKP5-4100 |
125 | 230-440V | UKP5-3125 | UKP5-4125 |
150 | 230-440V | UKP5-3150 | UKP5-4150 |
Maintenance swich
The load isolation switch UKP can be used as an overhaul switch or a master switch with a shell to connect various electrical loads. The opening position can be equipped with multiple padlocks. To ensure personal safety, the opening position should be clear and cannot be automatically reset.
The safety switch complies with IEC 60947-3 and GB14048.3 standards
1.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;there are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.
2.Safe and Reliable: the terminals equipped with protective cover conform to VDE0106,to ensure the safety of finger touch
3.It has a variety of uses in industrial machinery and equipment.For example,when used as maintenance switch and insurance switch,3 padlocks can be installed in O part to ensure the personal safety of users.
4.It can be used reliably in lighting equipment,heating equipment and motors reliably,in addition,they also can switch the motor(AC-3) derectly,its high on-off ability can ensure the work reliability at frequently making and breaking.
5.Beautiful appearance,novel,simple,small size and function are the ideal choice among similar products.
Packaging & Delivery
Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
Trade Term | EXW, FOB, CIF as customer need |
Payment Term | T/T 30% as deposit,and 70% before delivery. |
Packaging | Neutral carton, or according to customer requirements |
Shipping | By Air, by sea, by express |
Service
1.Please kindly inform us which items you are interested&the reasonable price will be provided you upon receipt of your new inquiry ASAP.
2.OEM and ODM service provided.
3.Solved the problem with you during using our products.
4.Samples will be offered to you for our future cooperation.
5.We cooperate with reliable logistics companies.
Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".
Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.
The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.
Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
