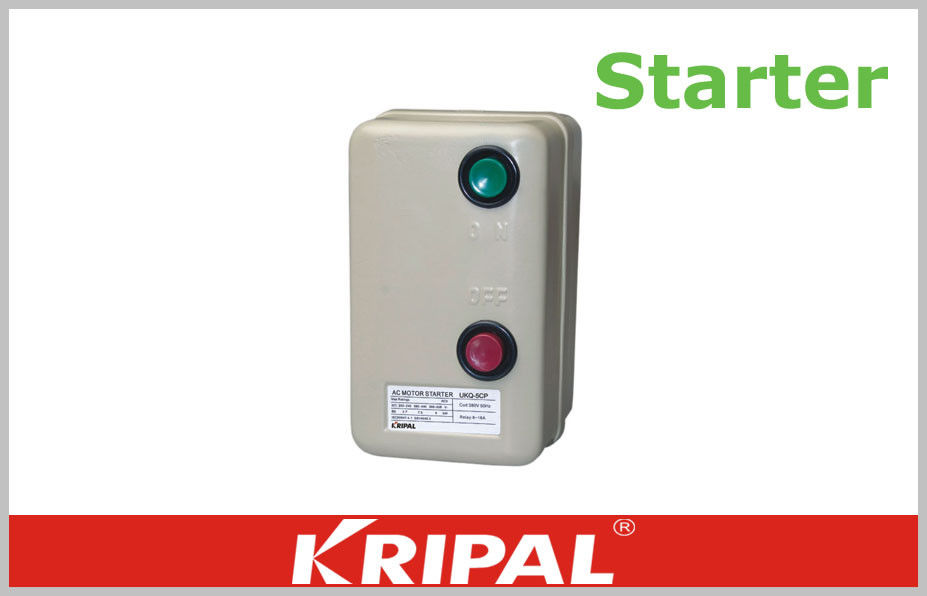

M-5CP DOL Metal 220V Contactor AC Magnetic Starter Electric Motor Protection

M-5CP DOL Metal 220V Contactor AC Magnetic Starter Electric Motor Protection

    • M-5CP DOL Metal 220V Contactor AC Magnetic Starter Electric Motor Protection
    • M-5CP DOL Metal 220V Contactor AC Magnetic Starter Electric Motor Protection
    • M-5CP DOL Metal 220V Contactor AC Magnetic Starter Electric Motor Protection
  • M-5CP DOL Metal 220V Contactor AC Magnetic Starter Electric Motor Protection

    Product Details:

    Place of Origin: China
    Brand Name: KRIPAL
    Certification: CE
    Model Number: UKQ-5CP

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pcs
    Price: negotiable
    Packaging Details: Each unit packed in a individual box
    Delivery Time: 20 days and depends on ordering quantity
    Payment Terms: T/T, L/C
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Brand: KRIPAL Current Range: 18A
    Poles: 3P Auxiliary: 1NO+1NC
    Contacts: 85% Silver Ag Coil: AC
    High Light:

    ac magnetic contactor

    ,

    definite purpose contactor



    M-5CP DOL Metal 220V Contactor AC Magnetic Starter Electric Motor Protection





    Magnetic Starter  is to start, stop and convert motors,and protect motors from overload and phase failure.



    Description:



    - UKQ series magnetic starter is mainly applied to circuit of AC 50/60hz, voltage up to 550V.


    - It is used for making and breaking circuit of far distance.


    - It can also be used for frequently starting and controlling motor.


    - It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance.


    - It complies to IEC947-4-1 standard.



    Specifications:



    Type

    Rated Power(W)

    Rated Current(A)

    AC1 Duty

    Setting Current (A)

    AC 3 Duty

    AC 3 Duty

    220V-220V

    380V-440V

    500V-550V

    220V-220V

    380V-440V

    500V-550V

    UKQ-5CP

    4

    7.5

    9

    18

    17

    17

    32

    2-4, 4-8, 8-16

    UKQ-5CPB

    4

    7.5

    9

    18

    17

    17

    32

    2-4, 4-8, 8-16





    Working conditions:



    1). The altitude does not surpass 2000m;

    2). The arrounding temperature is: -5° C ~ +40 ° C, its average temperature does not surpass +35 ° C in 24 hours;

    3). The relative temperature is not over 85% (20 ° C ± 5 ° C);

    4). The vibration is not over 0.5mm, the frequency is not over 600times/minute

    5). Does not surpass ± 5 with the vertical gradient;

    6). Has rainproof and snowproof equipment place.

    7). If there is welds explodes in the dangerous medium, And with the dew corrosion metal body and the electric conduction rust place.





    Diagram & Dimension:



    M-5CP DOL Metal 220V Contactor AC Magnetic Starter Electric Motor Protection 0





    Service:



    1. Delivery time: 20 working days for bulk order and depend on ordering quantity



    2. Strong production capacity and strict quality control system;



    3. Your inquiry and problems related to our products or prices will be replied in 24 hours;



    4. Well-trained and experienced staffs to answer all your inquires;



    5. After-sale tracking service for all of our clients;



    6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.



    7. Payment: usually L/C, T/T,



    8. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)
