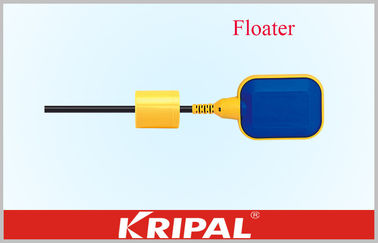

Water Level Controller Float Level Switch UKY-2 10A 16A 220V CE SEMKO

Water Level Controller Float Level Switch UKY-2 10A 16A 220V CE SEMKO

    • Water Level Controller Float Level Switch UKY-2 10A 16A 220V CE SEMKO
  • Water Level Controller Float Level Switch UKY-2 10A 16A 220V CE SEMKO

    Product Details:

    Place of Origin: China
    Brand Name: KRIPAL
    Certification: CE
    Model Number: UKY-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pcs
    Price: negotiable
    Packaging Details: Each unit packed in a individual box
    Delivery Time: 20 days and depends on ordering quantity
    Payment Terms: T/T, L/C
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Brand: KRIPAL Current: 10A
    Power Supply: 220V; 50Hz Color: Blue / Yellow
    Purpose: Controlling Water Level Customized: Color
    High Light:

    cable float level switch

    ,

    water pump float switch



    Water level controller UKY-2 10A 16A Blue Yellow Color customize acceptalbe 220V Floater Level Switch CE SEMKO


    Description:

    Cable float switch is a device used to detect the level of liquid within a tank. The switch may be used in
    a pump,  an indicator, an alarm, or other devices.
    When used in a typical sump pump application, the float switch is used to turn an electric pump on and off.
    As water enters the reservoir of the sump pump, a plastic float begins to rise. The float is commonly fastened
     to a rigid structure at one end, thereby, causing the float to pivot or roll over as it rises on the water level.

    A micro switch inside of the float switch is connected to an electric pump by wiring that runs through the
    chassis of the pump. Once the proper angle is reached by the float, the ball inside runs to the low side of the
    switch and completes the circuit, allowing electricity to reach the pump motor and begin to pump the water out
     of the basement or structure. Once the water has been pumped out of the reservoir and the float reaches its
     resting level once again, the ball flows out of the switch and the contact is broken within the wiring harness,
     turning off the pump motor. In this design, the float switch is commonly housed in a copper, aluminum or tin
    float canister to prevent rust and deterioration in the submerged position.


    Specifications:


    Model

    UKY-2

    Micro switch

    10(8)A250V -  10(4)A 380V

    Switch currency

    More than 50000 ON/OFF tested as VDE standards

    Protective connection

    T70U

    Protection grade

    IP68

    Max temperature

    70

    Working pressure

    Max. 1 bar

    Power supply

    220VAC 50HZ

    Ambient temperature

    -30 - +80

    Power consumption

    Less than 1.5kw



    Competitive Advantage:

    1. The core of cable is real copper not copper - covered aluminum
    2. Good micro switch in the ball ensure the long life of float switch
    3. The raw materials of plastic are brand-new with high quality


     Water Level Controller Float Level Switch UKY-2 10A 16A 220V CE SEMKO 0


    Warning:

    1. Float switch is not working in the acid and corrosion -resistant circumstances with PVC cable. The cable will be decayed and float switch be made water leakage after using.
    2. Float switch work in the sewage and acid, corrosion-resistant circumstances. We will made to order for customer.
    3. Float switch should connect AC contractor , when the single-phase pump power over 750W.
    4. Float switch is not working over 1 bar pressure for using.

    Dimension:


    Water Level Controller Float Level Switch UKY-2 10A 16A 220V CE SEMKO 1


    Special requirements?

    We will help you find an individual solution for your switching needs.

    Our project engineers are here to understand the special requirements of your project and assist to develop a solution as a partner.
    Should your requirements not be covered by our extensive standard product range we have our own R&D and mould tooling center for special switches in order to flexibly, promptly and cost effectively meet your individual requirements.

    Just let us know your ideas, and we will show you a great solution.
