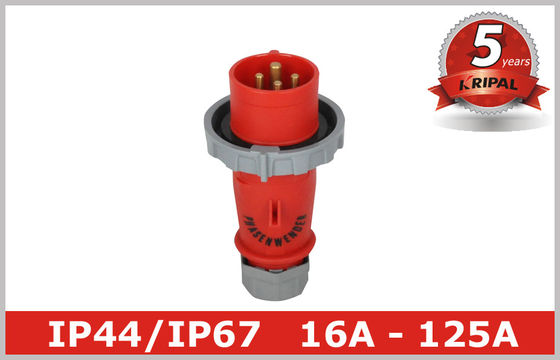

Single Phase Inverter Industrial Power Plug Sockets 380V 415V 3P+E 3P+N+E

Single Phase Inverter Industrial Power Plug Sockets 380V 415V 3P+E 3P+N+E

  • Single Phase Inverter Industrial Power Plug Sockets 380V 415V 3P+E 3P+N+E
  • Single Phase Inverter Industrial Power Plug Sockets 380V 415V 3P+E 3P+N+E
  • Single Phase Inverter Industrial Power Plug Sockets 380V 415V 3P+E 3P+N+E
  • Single Phase Inverter Industrial Power Plug Sockets 380V 415V 3P+E 3P+N+E
Single Phase Inverter Industrial Power Plug Sockets 380V 415V 3P+E 3P+N+E
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKS-A series
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: Standard Exporting Package
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Material: NYLON PA6, PC, Copper IP Protection: IP44 IP67
Pins Available: 4 Pins 5pins Voltage: 380V / 415V
Current Range: 16A,32A Frequency: 50/60 Hz
High Light:

Appliance Inlet

,

Pin and Sleeve Plug

Single Phase Inverter Industrial Power Plug Sockets 380V 415V 3P+E 3P+N+E





Description:



In Europe, the most common range of heavy industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEE form or simply CEE plugs.



Phase inverter plug/inlet from KRIPAL is available as plug, surface inlet and panel inlet with screw terminal block, integrated shell structure . A phase inverter plug is a good way for manufacturers of portable 3-phase equipment such as motors and pumps as well as manufacturers of extension cords to add customer value to their products.





Specifications:



Rated current

 16A, 32A

No. of poles

 3P+E, 3P+N+E

Voltage

 380V-415V

Protection degree

 IP44, IP67

Power type

 single phase

Conductor cross-sectional area (mm2)

 1.5-4(16A); 2.5-10(32A)

Material

 NYLON PA6, PC, copper

Color

 RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).





Applications:



A contractor showing up on a site for a job and noticing that his equipment is working in wrong direction will lose time on rewiring his standard plug, if instead his equipment is connected with a phase inverter plug he can change the phase sequence within a few seconds and start the job he is there to do without losing time.





Advantages: waterproof, dust-proof, impact resistance, anti-corrosion





Warranty: five years, any faulty items cause by bad materials or not good production will be replaced freely,

 are you still worried about the quality?


Samples provided freely





Our advantage:



 1. We are professional in making precision plastic mould with high quality and manufactory plastic products.



2. We can provide high-quality of new product R & D, designing, mould forming and making and processing of plastic products.


3   We can tailor various kinds of Mould for each customer as per their requirements. The quotation can be made based on drawings or samples provided by the customers. Our products are both excellent in quality and reasonable in price.



4. There are a variety of imported equipments, such as processing center, huge engraving machine and electric spark



5.  We also have punctual delivery time


6.   We are committed to providing the best quality and service for customers all long. we enjoyed high reputation among our clients at home and abroad.
