230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug

China 230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug supplier
230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug supplier 230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug supplier 230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug supplier

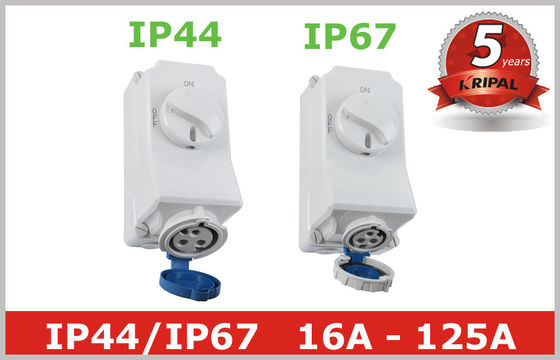

Large Image :  230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKS series

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Purpose: Industrial Currenty: 16A,32A,63A,125A
Voltage: 220V-250V, 380V-415V Protection Grade: IP44, IP67
Plastic Materials: Nylon, Rubbber Metal: Copper



230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug





KRIPAL has the UTILITY MODEL PATENT for the mechanical interlock device inside.





After insertion and switching on, the plug is interlocked in the ON-position. After switching off and withdrawing, the switch is locked in the OFF-position.





Description:



1.PC Interlocked Switch Sockets are constructed for extreme operating conditions.



They are of easy installation, long life and high reliability. They are widely used since many years ago in the machine industry, crane industry, construction industry, trains and cars.

2.The cases and inlets are made of grade plastic nylon 66.



 The material has extremely good insulation ability and it is unbreakable, wearable long-time durable up to +120°C, resistant against oil, gasoline and salt water, almost non-aging, proof and splash-proof.



3.All units not only fit with the same system but also are fully compatible with units Of the same system of other manufacturers, through groove and tongue, joint for same polarity,





Specifications:



Product

Mechanical Interlocked Switch Socket

Rated Ampere

16A, 32A, 63A, 125A

No. of poles

2P+E, 3P+E, 3P+N+E

Voltage

230V, 400V

Protection degree

IP44, IP67

Power type

Single Phase, Three phase

Conductor cross-sectional area (mm2)

1.5-4(16A); 2.5-10(32A), 6-25(63A)

Material

NYLON PA6, PC, copper

Color

RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).





Construction Structure:



Mechanical interlock device inside

Articulated cover prevent dust and water

Compact design, cable entry hole from side or bottom

Quality brass one-piece, high conductivity

Semko certified UKP series switchgear mounted in box





230V 400V Waterproof Interlocked Switch Sockets for Industrial Plug




Full range of Industrial Plug Socket as follows:

Protection IP44/IP67
Current 16A, 32A, 63A, 125A, 250A, 420A
Pins 2P+E, 3P+E, 3P+N+E
Voltage 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
PLUG & SOCKET Low voltage plug socket <50V
Industrial plug, industrial socket
Wall mounted socket, wall mounted plug
Panel mounted socket, panel mounted plug
Interlocked switched socket
BOX Industrial portable socket box
Industrial plastic socket box
Power maintenance box (stainless)
Power maintenance box (plastic)
Industrial lighting box (plastic)
Industrial lighting box (metal)
Distribution box for exhibition box
T. V / Film power distribution box
Distribution box with power and compress air outlet
Accessories Cap for 16A, 32A, 63A, 125A plug





Service



1. Delivery time: 20 working days for bulk order and depend on ordering quantity

2. Strong production capacity and strict quality control system;

3. Your inquiry and problems related to our products or prices will be replied in 24 hours;

4. Well-trained and experienced staffs to answer all your inquires;

5. After-sale tracking service for all of our clients;

6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.

7. Payment: usually L/C, T/T,

8. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)
