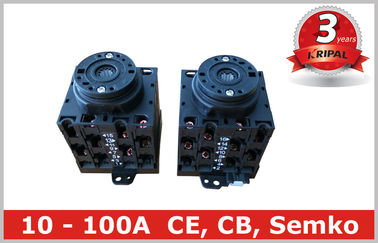

Industrial IP65 20A Generator Changeover Switch EN 60947 EN 60204-1

Industrial IP65 20A Generator Changeover Switch EN 60947 EN 60204-1

    • Industrial IP65 20A Generator Changeover Switch EN 60947 EN 60204-1
    • Industrial IP65 20A Generator Changeover Switch EN 60947 EN 60204-1
  • Industrial IP65 20A Generator Changeover Switch EN 60947 EN 60204-1

    Product Details:

    Place of Origin: China
    Brand Name: KRIPAL
    Certification: CE
    Model Number: UKT0

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pcs
    Price: negotiable
    Packaging Details: Each unit packed in a individual box
    Delivery Time: 20 days and depends on ordering quantity
    Payment Terms: T/T, L/C
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Box: Brand-new PC Hanld/panel: Red/grey
    Metal Parts: Copper Warranty: 3 Years
    Protection Grade: IP65 Patent: Desigh Patent
    High Light:

    Multi Position Selector Switch

    ,

    Explosion Proof Selector Switch



    Industrial IP65 20A Generator Changeover Switch EN 60947 EN 60204-1





    KRIPAL has the DESIGN PATENT for UKT series switches,





    Rotary selector switches from KRIPAL Electric are independently programmable, manually operated control switches for main and auxiliary circuits with up to 24 contacts and are offered with switching angles of 30°/45°/60°/90°/120°/135°/150°. Therefore a maximum of 12 switching positions can be provided.





    Raw materials: PC enclosure, nylon plastic parts inside, metal parts as copper& silver





    Description:



    1. Forced open contacts
    2. Finger protected
    3. Fulfills the load break requirements up to 690 V and 1000 V
    4. Terminal screws in open position
    5. Red operation lever & yellow panel, pad lockable
    6. Disconnect Switches offer ideal features for their use as: ON-OFF Switches, changeover Switches,

    Multi-step Switches, Code Switches, Gang Switches, Instrument Switch sand Motor switches

    Applications:



    Apply in control of machines, lights, protective devices, measurement equipments, as well as control motors.





    Specifications:



    Product

    Selector switch

    Rated current

    10A,16A 20A

    Poles

    2P, 3 P,4P,5P

    Voltage

    690 V and 1000 V

    Protection degree

    IP65

    Switching angle

    30°/45°/60°/90°/120°/135°/150°

    Standards

    EN 60947, EN 60204-1, IEC 60947, IEC 60204-1





    IP Ingress Introduction:



    A two-digit number established by the International Electro Technical Commission, is used to provide an Ingress Protection rating to a piece of electronic equipment or to an enclosure for electronic equipment.



    The two digits represent different forms of environmental influence:


     • The first digit represents protection against ingress of solid objects.
     • The second digit represents protection against ingress of liquids.



    The larger the value of each digit, the greater the protection.



    IP..

    First digit:
    Ingress of solid objects

    Second digit:
    Ingress of liquids

     0

    No protection

    No protection

     1

    Protected against solid objects over 50mm e.g. hands, large tools.

    Protected against vertically falling drops of water or condensation.

     2

    Protected against solid objects over 12.5mm e.g. hands, large tools.

    Protected against falling drops of water, if the case is disposed up to 15 from vertical.

     3

    Protected against solid objects over 2.5mm e.g. wire, small tools.

    Protected against sprays of water from any direction, even if the case is disposed up to 60from vertical.

     4

    Protected against solid objects over 1.0mm e.g. wires.

    Protected against splash water from any direction.

     5

    Limited protection against dust ingress.
    (no harmful deposit)

    Protected against low pressure water jets from any direction. Limited ingress permitted.

     6

    Totally protected against dust ingress.

    Protected against high pressure water jets from any direction. Limited ingress permitted.





    About us:

    1. Certificates: CE, CB, Semko, SAA, TUV, UL, KEMA, ISO9001:2008


    2. We have 27 years of manufacturing and 17 years of exporting experience


    3. We have completely sales service system, ensures every detail is smooth


    4. We have new designed products each year by our R&D Department


    5. Perfect testing system ensures each product is qualified


    6. We have a good reputation in UK, Spain, Germany, Australian, UAE, Turkey, Brazil, Colombia, HK,

    Singapore, Malaysia and other areas
