Electrical 3 Pole Disconnect 16A 20A Rotary Isolator Cam Operated Switch

China Electrical 3 Pole Disconnect 16A 20A Rotary Isolator Cam Operated Switch supplier

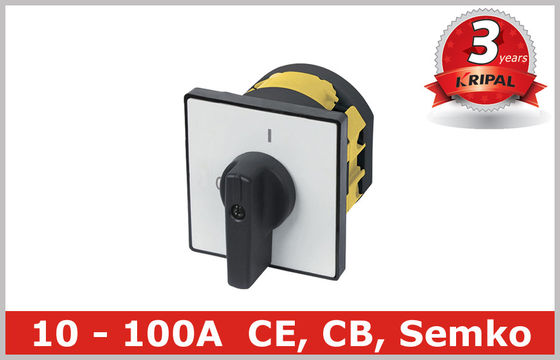

Large Image :  Electrical 3 Pole Disconnect 16A 20A Rotary Isolator Cam Operated Switch

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE, Semko
Model Number: UKG1

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Product: Rotary Isolator Switch Ampere: 12A,16A,20A,25A,32A,40A
Poles: 2pole, 3pole 4 Pole, 5pole Function: Isolator, Changeover
Color Of Handle: Black Warranty: 3 Years


Electrical 3 Pole Disconnect 16A 20A Rotary Isolator Cam Operated Switch




Description:



UKG1 is ON-Off switches to isolate the power to a particular area of operation. According to IEC/EN60204 or VDE01l3. all electrical equipments of industrial machines must be equipped with a Main Switch. This must permit disconnection of all the electrical equipment during cleaning. maintenance and repair work. and other extended periods, when is stationary.



Main Switch can be used for switching  and controlling main circuit, motor ON-Off and other special application circuit. such as illumination equipments, heating equipments and motors. Their high on-off ability ensure the work reliability of frequently making and breaking.




Specifications:


Electrical characteristics of the standard EN 60947-3   12 16 20 25 32 40
Rated operating voltage Ue V 690 690 690 690 690 690
Rated insulation voltage Ui V 690 690 690 690 690 690
Rated impulse withstand voltage Uimp kV 4 4 4 6 6 6
Conventional thermal current Ith A 12 16 20 32 40 50
Conventional enclosed thermal current A 12 16 20 25 32 40
Frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60
AC-21ALight-overload 690V A 12 16 20 25 32 40
Switching load
AC-22AMixed light overload switch 690V A 12 16 20 25 32 40
Load and inductive load
Single phase-2P 110V A/kW 12/1, 1 14/1, 5 18/2 20/1, 5 25/2, 2 35/3
230V A/kW 12/2, 2 14/3 18/4 25/4 30/5, 5 35/6, 5
AC-23A 230V A/kW 10/3 13/4 16/5 25/7, 5 30/9 35/11
Driven periodically switch 3PH 400V A/kW 10/5, 5 13/7, 5 16/9 22/11 27/15 32/18, 5
  500V A/kW 10/7, 5 14/10 16/11 22/15 27/18, 5 32/22
690V A/kW 10/7, 5 14/10 16/12, 5 16/15 20/18, 5 25/22
Single phase-2P 110V A/kW 10/0, 75 12/11 16/1, 5 16/1, 1 20/1, 5 30/2, 5
230V A/kW 10/2 12/2, 2 16/3, 5 20/3, 7 25/4 30/5, 5
AC-3squirrel cage motor starting 230V A/kW 8/2, 2 10/3 12/4 18/5, 5 23/7, 5 27/9
(Running in the process of interruption)              Three phase-3P 400V A/kW 8/4 10/5 10/6 16/7, 5 20/11 27/15
  500V A/kW 8/5 10/7, 5 12/8 16/11 20/15 27/18, 5
690V A/kW 6/5, 5 8/7, 5 10/9 12/11 16/15 20/18, 5





Features:



• Safety switches are always housed in insulated enclosures and have an inscription saying "Safety Switch" on a bright orange label.



• Switches to be used for emergency stop switching have a red handle and yellow locking collar in accordance with STOP category O (as per IEC/EN 60204/VDE 0113).



• If the switch is not approved for emergency stop switching, both parts will be black ("SW" part no. suffix).



• The cover and handle are interlocked by fitting a padlock.





Normal Working Conditions:



1. The ambient air temperature does not exceed +40º C, the average temperature within 24 hours and not more than +35º C.



2. The ambient air temperature is not lower than -5º C.



3. Installation site altitude does not exceed 2000m.



4. The relative humidity of the air no more than 50% when the maximum temperature is +40º C and at a lower temperature allows a higher relative humidity, such as when temperature is 20º C the relative humidity reach 90%. To condensation occasionally due to temperature changes should take special measures.
