European Outdoor Rotary Disconnect Switch , Lockable 3 Position Rotary Switch

China European Outdoor Rotary Disconnect Switch , Lockable 3 Position Rotary Switch supplier

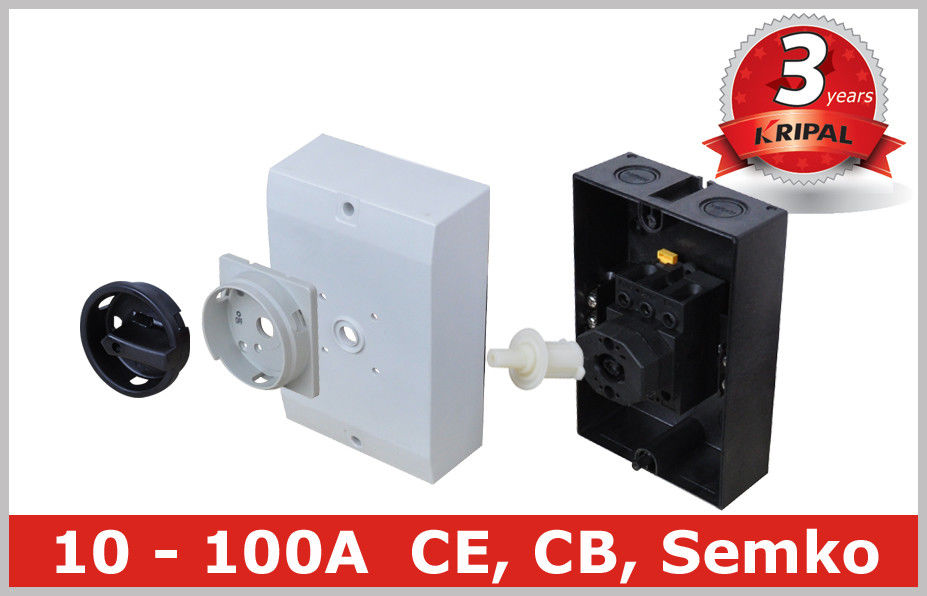

Large Image :  European Outdoor Rotary Disconnect Switch , Lockable 3 Position Rotary Switch

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE, Semko
Model Number: UKP3

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Product: Rotary Isolator Switch Cable Access: M20/25 Knockouts
Protection Grade: IP65 Red/Yellow Rings: Lockable
Enclosure: Brand-new PC Earth Terminals: Included


European Outdoor Rotary Disconnect Switch , Lockable 3 Position Rotary Switch


KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.



   Switchgear housed in moulded enclosures provides the basis for most industrial applications, and the added benefits offered by the 'UKP/UKPN' range provide the user with a wealth of opportunities when selecting the correct item for a specific application. Enclosure  IP65 sealing. Good sealing is a feature of the 'UKP/UKPN' range as is the ability to add a selection of auxiliary blocks providing additional contacts and a choice of Neutral assemblies.



Description:

1. These rotary isolator switches are used to switch power to commercial / light industrial applications.

2. The red switch can be used as an emergency stop, and can be locked in the “OFF” position using
     the yellow surrounding ring and padlock.

3. Easy cable access via M20/25 knockouts

4. The screws are captive retained and would not drop off when the lid is turned over.

5. Earth terminal is included

6. Enclosure: brand-new PC, White

7. Standard: manufactured and tested as IEC 60947-3


Specifications:



No.

Tech Parameters

requirement

1.

Rated voltage

below 440V

2.

rated current

10A,16A,20A,25A,32A,40A,50A,63A,80A,100A

3.

frequency

AC50HZ

4.

No. of poles

2P,3P,4P,5P

5.

No. of layers

make as required with circuit diagram

6.

panel size

64*64mm

7.

color of handle

Black/red

8.

Working temperature

-25°C~+40°C

9.

 Working height

 ≤2,000m

10.

 Relative humidity

 ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C

(eg.: humidity 90%----teperature20°C)

11.

 Installation conditions

 pollution class III

12.

 Mechanical life

 0.1*106times

13.

 Electrical life

 0.03*106times

14.

 Operative frequency

 120times/hour

15.

 Transform angle

 90°



Advantages:

Small size, multi-function, compact structure, high quality material, good insulation, agile operation, reliability, safety, good appearance.


Applications:

Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches



Optional:

a. Netural contacts

b. 1NO+1NC module

c. Color of handle and surroundings





Range:



For the PC boxed rotary isolator switch, there are two series as UKP & UKPN which are totally built by KRIPAL. UKPN is the newest style with retaintive plastic screws. Whilst, the switchgear inside is the same series.



Before place order, please check the differences between these two series.





General Information:



Certificate: CCC, CE, CB, UL, Semko, KEMA, TUV, SAA, ISO9001-2000 and etc



Main market: Europe, Australia, Middle East, Asia, Africa, South of America.



What we do by ourselves:

Mould design, mould building, mould maintenance, production of parts & components, parts & components assembling, packing, test for parts & finished products,  publicity-enterprise planning



Workshops:

Mould-building workshop, injection workshop, punching workshop, Instrument Workshop, Welding workshop, Assembling workshop, Warehouse and etc



ODM:

We are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.



Main business:

Circuit breakers, relay, contactor, rotary switch, industrial switch socket, industrial plug socket float switch and junction boxes etc.
