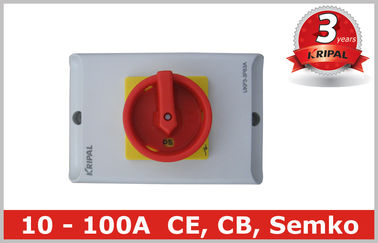

PC Safety 3 Pole 63 Amp Rotary Isolator Switch for Power Distribution

PC Safety 3 Pole 63 Amp Rotary Isolator Switch for Power Distribution

  • PC Safety 3 Pole 63 Amp Rotary Isolator Switch for Power Distribution
  • PC Safety 3 Pole 63 Amp Rotary Isolator Switch for Power Distribution
  • PC Safety 3 Pole 63 Amp Rotary Isolator Switch for Power Distribution
PC Safety 3 Pole 63 Amp Rotary Isolator Switch for Power Distribution
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE, Semko
Model Number: UKPN3
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Product: Rotary Isolator Switch Cable Access: M20/25 Knockouts
Protection Grade: IP65 Red/Yellow Rings: Lockable
Enclosure: Brand-new PC Earth Terminals: Included
High Light:

electrical disconnect switch

,

rotary cam switch


PC Safety 3 Pole 63 Amp Rotary Isolator Switch for Power Distribution


KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.





Switchgear housed in moulded enclosures provides the basis for most industrial applications, and the added benefits offered by the 'UKPN' range provide the user with a wealth of opportunities when selecting the correct item for a specific application. Enclosure  IP65 sealing. Good sealing is a feature of the 'UKPN' range as is the ability to add a selection of auxiliary blocks providing additional contacts and a choice of Neutral assemblies.



The UKP series rotary switch is a multipurpose high-tech product with compact and reasonable structure, small volume and wide function adjustment. It is a domestic leading product, which was entailed as the key new product and high & new technology transformation project of Shanghai Municipality.




Description:

1. These rotary isolator switches are used to switch power to commercial / light industrial applications.

2. The red switch can be used as an emergency stop, and can be locked in the “OFF” position using
     the yellow surrounding ring and padlock.

3. Easy cable access via M20/25 knockouts

4. The screws are captive retained and would not drop off when the lid is turned over.

5. Earth terminal is included

6. Enclosure: brand-new PC, White

7. Standard: manufactured and tested as IEC 60947-3


Specifications:





No.

Tech Parameters

requirement

1.

Rated voltage

below 440V

2.

rated current

10A,16A,20A,25A,32A,40A,50A,63A,80A,100A

3.

frequency

AC50HZ

4.

No. of poles

2P,3P,4P,5P

5.

No. of layers

make as required with circuit diagram

6.

panel size

64*64mm

7.

color of handle

Black/red

8.

Working temperature

-25°C~+40°C

9.

 Working height

 ≤2,000m

10.

 Relative humidity

 ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C

(eg.: humidity 90%----teperature20°C)

11.

 Installation conditions

 pollution class III

12.

 Mechanical life

 0.1*106times

13.

 Electrical life

 0.03*106times

14.

 Operative frequency

 120times/hour

15.

 Transform angle

 90°



Optional:

a. Netural contacts

b. 1NO+1NC module

c. Color of handle and surroundings


Advantages:



1. Safe and reliable, the safe touch design of the connection terminals can also be used to prevent the bolts from loosing, higher reliability from the double-break contact head on the connection point;



2. Easy assembly and disassembly, bolt mount, central mount, box mount, guide rail mount, etc. provided;



3. Flexible and highly efficient, literally unlimited connection point types including more than 900 commonly used, able to provide multiple solutions;



4. Complete varieties, ON/OFF switches of 10A, 16A, 20A ,25A, 32A, 40A, 50A, 63A, 80A, 100A



Applications:

Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches.



About us:

1. Certificates: CE, CB, Semko, SAA, TUV, UL, KEMA, ISO9001:2008
2. We have 27 years of manufacturing and 17 years of exporting experience
3. We have completely sales service system, ensures every detail is smooth
4. We have new designed products each year by our R&D Department
5. Perfect testing system ensures each product is qualified
6. We have a good reputation in UK, Spain, Germany, Australian, UAE, Turkey, Brazil, Colombia, HK, Singapore, Malaysia and other areas
