Place of Origin: | China |
Brand Name: | KRIPAL |
Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
Model Number: | UKPN0-316 |
Minimum Order Quantity: | 1000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Each unit packed in a individual box |
Delivery Time: | 20 days and depends on ordering quantity |
Payment Terms: | T/T, L/C, D/P |
Supply Ability: | 100000 pcs per month |
Pole: | 2P,3P,4P,5P | Rated Current: | 10A,16A,20A |
---|---|---|---|
Protection Degree: | IP65 | Material: | PC,Copper |
Handle Color: | Red,Black | Advantage: | Dustproof,Safety,Low-energy |
High Light: | Universal Changeover Combination Switch,Single Phase Changeover Combination Switch,Rotary Isolator Switch 20A |

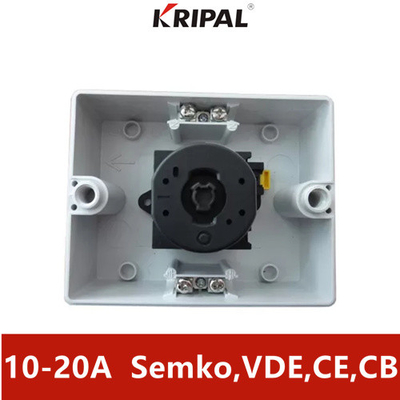

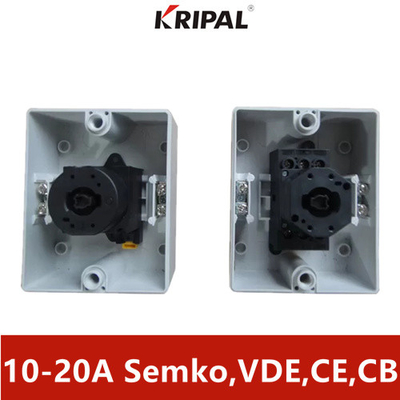

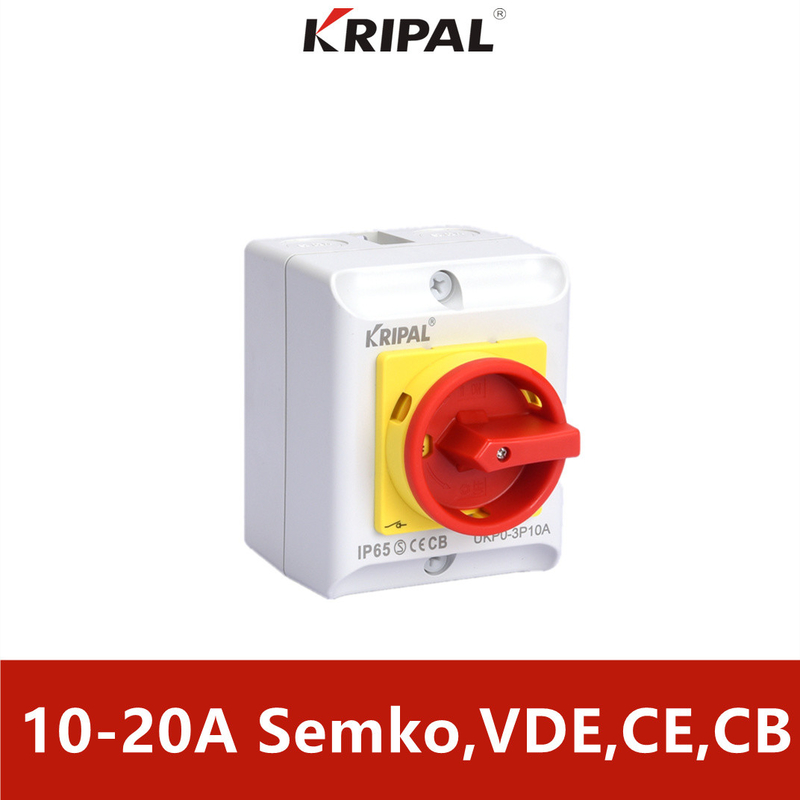

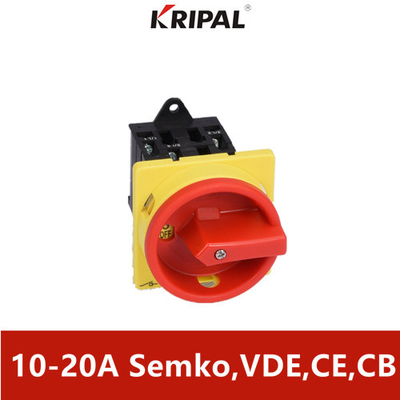

The utility model is a rotary load isolating switch used for line connection, disconnection and line maintenance or load maintenance for isolation. It includes a movable contact support part, a transmission mechanism, a static contact, and a shell. Wiring seat, base. Because the utility model adopts a spiral transmission mechanism to realize the structure of closing and breaking of moving and static contacts, and at the same time adopts a scroll spring as an energy storage spring, it can ensure fast closing and breaking speeds. The utility model has good stability and high on-off capability. In addition, the utility model not only allows the operator to clearly see the opening and closing conditions of the moving and static contacts, but also prohibits the misoperation of the closing of unrelated personnel. Reasonable, clever design, safe and reliable, convenient and practical, and excellent performance.
Specification
Rated current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A |
No. of poles | 2P,3P,4P,5P |
Voltage | 230-440V |
Protection degree | IP65 |
Frequency | 50/60Hz |
Standard | IEC/EN60947 |
Material | PC, Copper |
Warranty | One and a half years |
Safety
The switch from the insulation disconnection contacts, Considerably more than the security requirements, in many cases, switch security level than the world existing electric block.
Flexible installation type
Switch suitable panel and can be used, installation, and base type can easily installed base and safely use screws or 35mm rail system installation, most strong flexibility and adaptability, additional contactor and neutral terminals may not remove switch and easily to increase theadditional contactor.
Convenient installation
Built-in screws can prevent manual operation sliding, pneumatic or power tools, ensure the best performance play during the installation and speed.
Packaging & Delivery
Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
Trade Term | EXW, FOB, CIF as customer need |
Payment Term | T/T 30% as deposit,and 70% before delivery. |
Packaging | Neutral carton, or according to customer requirements |
Shipping | By Air, by sea, by express |
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q:How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q:Are you factory?
A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two hours to Hangzhou by train, and one hour to Shanghai by air .Also very near to Wenzhou international Airport and Yueqing train station.
Q:Do you offer OEM service?
A:Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.
