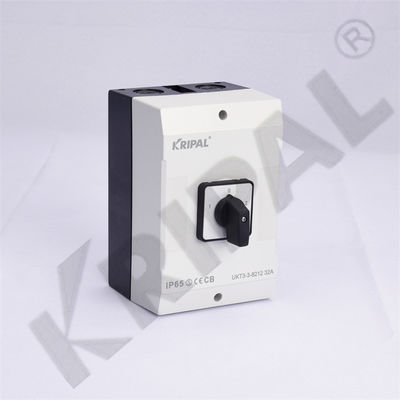

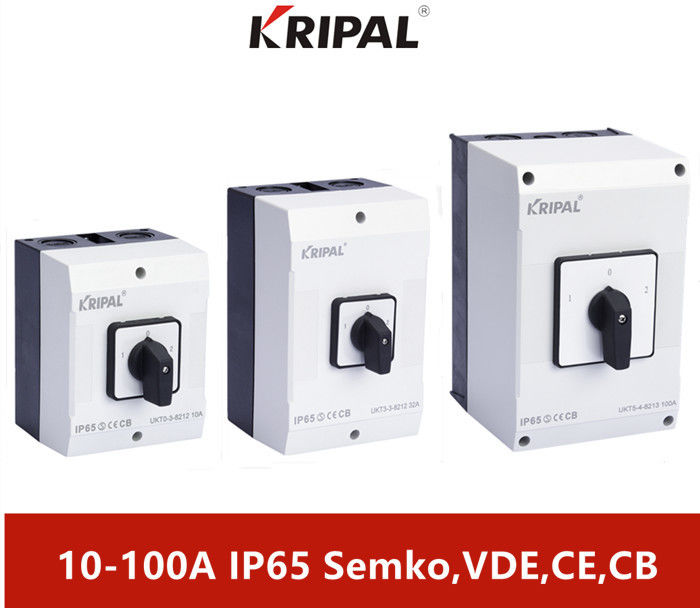

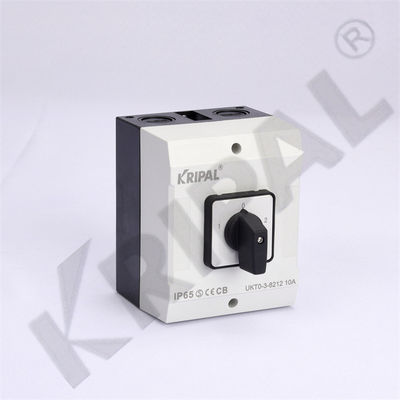

KRIPAL 10-100A IP65 Waterproof Changeover Switch RoHS Standard​

Product Description

UKT series universal switch is mainly used for ac 50 hz, rated voltage up to 440 v and below, dc voltage 220 v, rated current is 100 a circuit, is used to manually infrequently on or off circuit, in order to control and transformation, also can control three phase asynchronous motor and the circuit directly as the purpose of the master control and measurement. The products are widely used as circuit control switch, measuring equipment switch, motor control switch and master switch, welding machine switch and so on.

Compliance standards:

Transfer switches for main circuit switching and direct control comply with IEC/EN60947

The transfer switch for main control complies with IEC/EN60947

Reference Model

Product Feature

1.Possibility of multi-combination and safety of touch

The switch UKT provides 800 standard contact combinations, and the number of combinations is almost unlimited. In addition, safety and reliability are at the top of the switch design process, for example, VDE0106 is provided on the cover of the terminal to ensure the safety of touch.

2.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;There are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.

3.Flexible switch functions

On / off switch: it can be used for lighting heating equipment and motor reliably, or can switch motor directly (AC-3). Its high on / off capability ensures the working reliability when frequent on and off.

Control switch: Used to control the current loop. It simplifies the process of sending instructions from a central control position. For example, starting a specified process from a central control room saves time and makes the production process clear.

Operating application

①Motor(multi-tap winding)rev switching,speed of rotation for2,3 or 4 steps,commutation or no commutation.

②Motor star-delta starting,communication or no commutation,with or without contactor interlock circuit.

③Power supply switching or load switching.

④Starting of AC motor(for single-phase power supply with capacitor)

⑤Control of stepping,suitable for any loads,with or without “O”position.

⑥Ammeter or voltmeter switching among three-phase circuits.

⑦Manual/auto selection.
