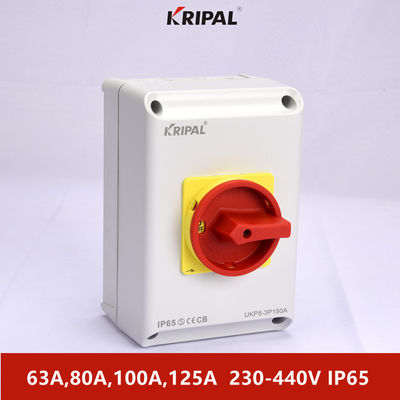

80A 4P IP65 Electric Isolator Switch Changeover Control Components

80A 4P IP65 Electric Isolator Switch Changeover Control Components

  • 80A 4P IP65 Electric Isolator Switch Changeover Control Components
  • 80A 4P IP65 Electric Isolator Switch Changeover Control Components
80A 4P IP65 Electric Isolator Switch Changeover Control Components
Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT
Model Number: UKPN5 series
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C, D/P
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Rated Current: 80A Pole: 4P
Protection Degree: IP65 Material: PC、Copper
Frequency: 50/60Hz Advantage: Waterproof,dustproof,safety
High Light:

4P ELectric Isolator Switch

,

125A ELectric Isolator Switch

,

Copper Electrical Changeover Switch

80A 4P Electric Isolator Switch Changeover Control Components





Product Description

1.Rated insulation voltage 230V-440V, current 10A~150A,commonly used in single-phase or three-phase AC system;

2.IP65 box body design, with the import of the sealing strip of the safety seal and dust,waterproof, anti ultraviolet materials;

3.Switch rotating operator (knob) with three lock position, reliable to prevent misuse;

4.Suitable for different cable connectors: M25, M20, M16 and M12, optional waterproof cable connectors;

5.Large wiring operation space, the product is fixed on the box body, the connection is still convenient;

6.Adequate internal space, good heat dissipation effect;

7.Large contrast color design, easy to distinguish;

8.Protection degree: IP65.



Current(A) Rated Voltage(V) Model
3P 4P
10 230-440V UKPN0-310 UKPN0-410
16 230-440V UKPN0-316 UKPN0-416
20 230-440V UKPN0-320 UKPN0-420
20 230-440V UKPN1-320 UKPN1-420
25 230-440V UKPN1-325 UKPN1-425
32 230-440V UKPN1-332 UKPN1-432
32 230-440V UKPN3-332 UKPN3-432
40 230-440V UKPN3-340 UKPN3-440
50 230-440V UKPN3-350 UKPN3-450
63 230-440V UKPN3-363 UKPN3-463
63 230-440V UKPN5-363 UKPN5-463
80 230-440V UKPN5-380 UKPN5-480
100 230-440V UKPN5-3100 UKPN5-4100
125 230-440V UKPN5-3125 UKPN5-4125
150 230-440V UKPN5-3150 UKPN5-4150





Maintenance switch



Load UKP useful as a check switch disconnector housing or with the main switch, connected to various electrical loads.Several padlocks can be assembled in the opening position,in order to ensure personnel safety,the opening position shall be clear and can not reset automatically.

This safety switch conforms to standards IEC 60947-3 and GB14048.3





Proper installation ways



①Surface installation(insulation enclosure assembled)

②Parallel and level installation(fix in front of it)

③Rear installation(fix at the back of it,door linkage or cover linkage)









Product Feature



1.Safe and Reliable: the terminals equipped with protective cover conform to VDE0106,to ensure the safety of finger touch



2.The full range: According to the classification power capacity, can provide the most economical solution for different projects; nameplate There are many different methods of installation, flexibility to meet the needs of specific applications.



3.It has a variety of uses in industrial machinery and equipment.For example,when used as maintenance switch and insurance switch,3 padlocks can be installed in O part to ensure the personal safety of users.



4.It can be reliably used for lighting equipment, heating equipment and the motor, in addition, the motor can also switch directly (AC-3), which is able to ensure high reliability of the switch when turned on and off frequently.



Application

Waterproof isolator switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches.

80A 4P IP65 Electric Isolator Switch Changeover Control Components 0





Packaging & Delivery



 Lead Time

 Normally 20 days after received your fund, but mostly depends on   your quantity

 Leading Port

 Ningbo or Shanghai by sea or by air. If any other loading port please   kindly advise and the extra inland transportation freight will be added   accordingly.

 Trade Term

 EXW, FOB, CIF as customer need

 Payment Term

 T/T 30% as deposit,and 70% before delivery.

 Packaging

 Neutral carton, or according to customer requirements

 Shipping

 By Air, by sea, by express









Our company





Zhejiang kripal Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in Yueqing, Zhejiang, the famous "electrical capital".



Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Zhejiang Province.



The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "KRIPAL" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.



Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
