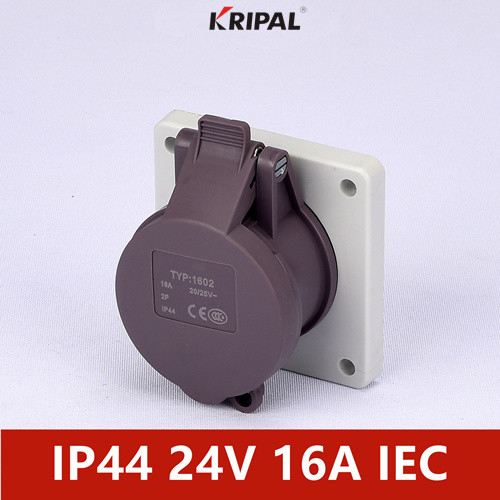

IP44 24V 48V 2P Single Phase Low Voltage Panel Mounted Socket

IP44 24V 48V 2P Single Phase Low Voltage Panel Mounted Socket

  • IP44 24V 48V 2P Single Phase Low Voltage Panel Mounted Socket
  • IP44 24V 48V 2P Single Phase Low Voltage Panel Mounted Socket
IP44 24V 48V 2P Single Phase Low Voltage Panel Mounted Socket
Product Details:
Place of Origin: CHINA
Brand Name: KRIPAL
Certification: CE
Model Number: UKS B series
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T,L/C, D/P
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Protection Degree: IP44 Material: Nylon,PA,PC,Copper
Rated Current: 16A,32A Rated Voltage: 24V,48V
Frequency: 50/60Hz Standard: IEC Standard
High Light:

Waterproof 3 Pin Panel Mount Socket

,

24V 16A Panel Mount Socket

IP44 24V 48V 2P Single Phase Low Voltage Panel Mounted Socket







Current Position Voltage Color Poles Model
16A     /  20-25V Purple 2P UKS-B1243
   /  20-25V Purple 2P+E UKS-B1343
12h 40-50V White 2P UKS-B1244-12
12h 40-50V White 3P+E UKS-B1344-12
32A     /  20-25V Purple 2P UKS-B2243
   /  20-25V Purple 2P+E UKS-B2343
12h 40-50V White 2P UKS-B2244-12
12h 40-50V White 3P+E UKS-B2344-12

IP44 24V 48V 2P Single Phase Low Voltage Panel Mounted Socket 0







Specifications

 Product

 Low-voltage Panel Mounted Socket

 Rated current

 16A,32A,

 No. of poles

 2P,2P+E,

 Voltage

 20-25V;40-50V

 Protection degree

 IP44

 Power type

 Single Phase

 Conductor cross-sectional area (mm2)

 1.5-2.5(16A), 4-6(32A)

 Material

 NYLON, PA, PC, Copper

 Warranty

 One and a half years







Poduct Feature

1. Safe and Reliable

①Rated voltage is indicated by the color of the shell, which is clear at a glance

②The diameter pole number of the grounding contact of the same specification product is different to prevent accidental insertion

③Protection against electric shock

④High protection level:IP44 andIP67

⑤With a keeping device, after plugging each other to prevent falling off ,so that the plug and socket can get the greatly improved reliability.



2.Durable

①Good mechanical properties, the shell is made of high quality engineering plastics, its high strength and impact resistance of rubber and plastic are anti-aging, not only can be used in the indoor, can also be used in the outdoor, durable components.

②Heat-resisting and Resistance to heat, enclosure and internal insulating parts are heat resistant

③Resistance to pull and plug under longstanding usage.



3. Strong universality

General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.







Product Application



Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.







Certification
