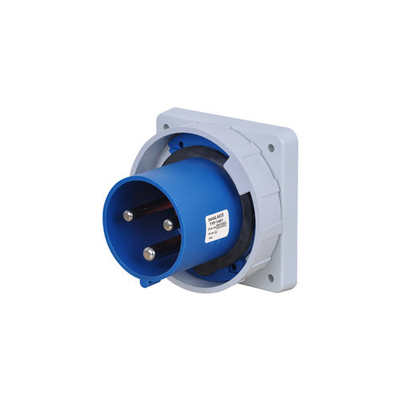

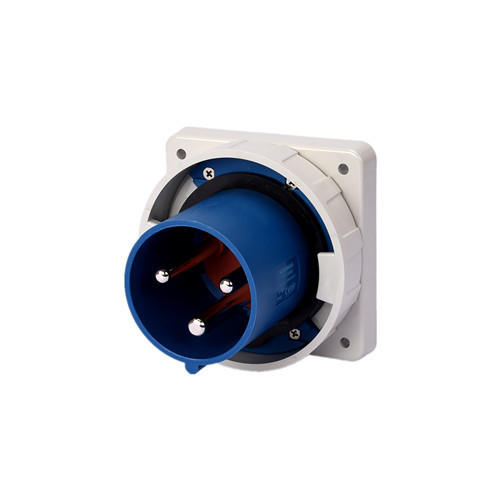

Name: Three Phase 63A 220V IP67 Waterproof Panel Mounted Plug Nickel Plated
Brand: KRIPAL
SKU: UKS-E336-6

Three Phase 63A 220V IP67 Waterproof Panel Mounted Plug Nickel Plated

Product Details:

Place of Origin:	CHINA
Brand Name:	KRIPAL
Certification:	CE
Model Number:	UKS-E336-6

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	negotiable
Packaging Details:	each unit packed in a individual box
Delivery Time:	20 days and depends on ordering quantity
Payment Terms:	T/T,L/C, D/P
Supply Ability:	50000 pcs per month

Contact Now

Detailed Product Description

IP Rating:	IP67	Material:	Nylon,PA,PC,Copper
Frequency:	50/60Hz	Rated Current:	63A,125A
Standard:	IEC Standard	Rated Voltage:	110V,230V,380V
High Light:	63A 220V Panel Mounted Plug , 3P Nickel Plated Panel Mounted Plug

Three Phase 63A 220V IP67 Waterproof Panel Mounted Plug Nickel Plated

Current	Position	Voltage	Color	Poles	Model
63A	4h	110-130V	Yellow	2P+E	UKS-E336-4
	6h	220-250V	Blue	2P+E	UKS-E336-6
	9h	380-415V	Red	2P+E	UKS-E336-9
	4h	110-130V	Yellow	3P+E	UKS-E346-4
	9h	220-250V	Blue	3P+E	UKS-E346-9
	6h	380-415V	Red	3P+E	UKS-E346-6
	4h	110-130V	Yellow	3P+N+E	UKS-E356-4
	9h	220-250V	Blue	3P+N+E	UKS-E356-9
	6h	380-415V	Red	3P+N+E	UKS-E356-6
125A	4h	110-130V	Yellow	2P+E	UKS-E436-4
	6h	220-250V	Blue	2P+E	UKS-E436-6
	9h	380-415V	Red	2P+E	UKS-E436-9
	4h	110-130V	Yellow	3P+E	UKS-E446-4
	9h	220-250V	Blue	3P+E	UKS-E446-9
	6h	380-415V	Red	3P+E	UKS-E446-6
	4h	110-130V	Yellow	3P+N+E	UKS-E456-4
	9h	220-250V	Blue	3P+N+E	UKS-E456-9
	6h	380-415V	Red	3P+N+E	UKS-E456-6

Specifications

Product	Industrial Plug
Rated current	63A,125A
No. of poles	2P+E,3P+E,3P+N+E
Voltage	110V-130V;220V-250V; 380V-415V
Protection degree	IP67
Power type	Single Phase, Three Phase
Conductor cross-sectional area (mm2)	1.5-4(16A), 2.5-10(32A)
Material	NYLON, PA, PC, copper
Color	110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black)

Product Feature

1. Safe and Reliable

①Rated voltage is indicated by the color of the shell, which is clear at a glance

②The diameter pole number of the grounding contact of the same specification product is different to prevent accidental insertion

③Protection against electric shock

④High protection level:IP44 andIP67

⑤With a keeping device, after plugging each other to prevent falling off ,so that the plug and socket can get the greatly improved reliability.

2.Durable

①Good mechanical properties, the shell is made of high quality engineering plastics, its high strength and impact resistance of rubber and plastic are anti-aging, not only can be used in the indoor, can also be used in the outdoor, durable components.

②Heat-resisting and Resistance to heat, enclosure and internal insulating parts are heat resistant

③Resistance to pull and plug under longstanding usage.

3. Strong universality

General use over all of the world, its specifications and varieties, can meet a variety of occasions and uses.

Certification

We can provide full range of industrial plug socket:

Protection	IP44/IP67
Current	16A, 32A, 63A, 125A, 250A, 420A
Pins	2P+E, 3P+E, 3P+N+E
Voltage	20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
Plug & Socket	Low voltage plug socket <50V
	Industrial plug, industrial socket
	Wall mounted socket, wall mounted plug
	Panel mounted socket, panel mounted plug
	Interlocked switched socket
Box	Industrial portable socket box
	Industrial plastic socket box
	Power maintenance box (stainless)
	Power maintenance box (plastic)
	Industrial lighting box (plastic)
	Industrial lighting box (metal)
	Distribution box for exhibition box
	T. V / Film power distribution box
	Distribution box with power and compress air outlet
Accessories	Cap for 16A, 32A, 63A, 125A plug

Service
1. Delivery time: 20 working days for bulk order and depend on ordering quantity
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.
7. Payment: usually L/C, T/T,
8. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)
