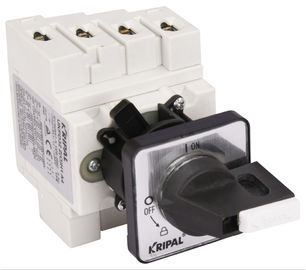

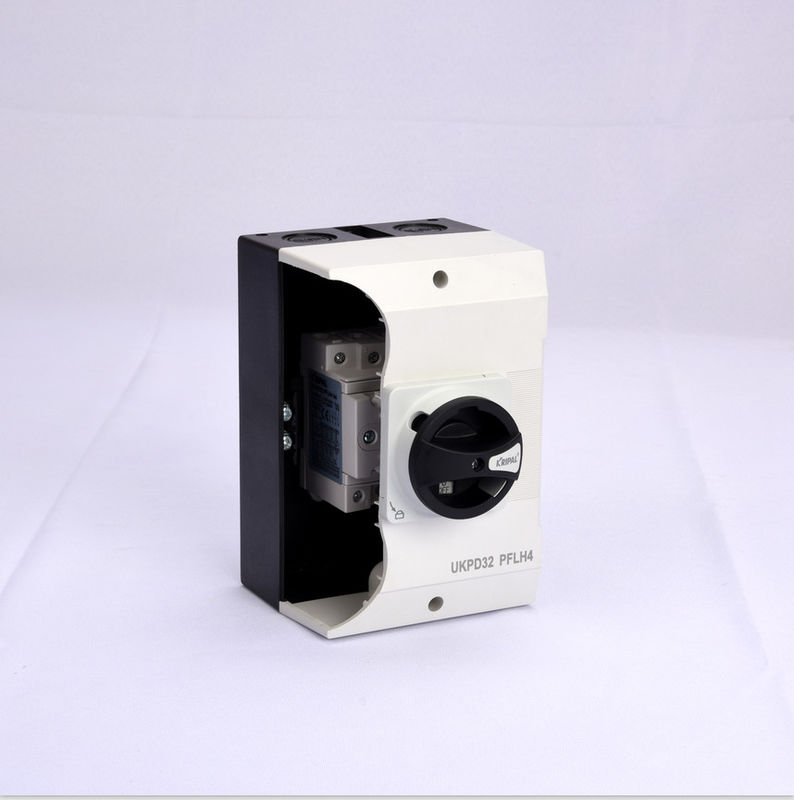

1500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator

1500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator

  • 1500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator
  • 1500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator
  • 1500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator
1500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator
Product Details:
Place of Origin: CHINA
Brand Name: KRIPAL
Certification: TUV CE
Model Number: UKPD32
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: $12-$16 PER UNIT
Packaging Details: 30pcs per carton box use normal carton box
Delivery Time: 10-20days
Supply Ability: 2000pcs per 10 days
Contact Now
Detailed Product Description
MATERIAL: PC MAX VOLTAGE: 1500V DC
MAX AMP: 32A HANDLE COLOR: CHANGEABLE COLOR
Electrical Cycle: 10000 Mechanical Cycle: 15000
High Light:

solar panel isolator switch

,

solar isolator switch





Model UKPD32
Poles 2P 4P
Standard IEC60947.3,AS60947.3:2018
Utilization Category DC-PV2 / DC-21B
Rated Operational Voltage (Ue) 500V,600V,800V,1000V
Mechanical Cycle 15000
Electrical Cycle 1000
Protection Degree IP66 enclosure/IP20 switch body
Polarity No Polarity
Certificate TUV / CB


Specification:



* 1000Vdc 32A

* IP66 for vertical and horizontal installation.

* UV resistance and flame retardant material.

1500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator 01500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator 11500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator 2

Packaging & Delivery
Packaging Details
1pc/inner box with plastic film.
20pcs/ctn

1500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator 31500V 32A Solar Panel DC Isolator Switch , Waterproof Rotary DC Switch Isolator 4

Model UKPD32
Poles 2P 4P
Standard IEC60947.3,AS60947.3:2018
Utilization Category DC-PV2 / DC-21B
Rated Operational Voltage (Ue) 500V,600V,800V,1000V
Mechanical Cycle 15000
Electrical Cycle 1000
Protection Degree IP66 enclosure/IP20 switch body
Polarity No Polarity
Certificate TUV / CB
