Custom AC Bimental Magnetic Overcurrent Relays Current Range 0.1 - 22A 3P Standard Type

China Custom AC Bimental Magnetic Overcurrent Relays Current Range 0.1 - 22A 3P Standard Type supplier
Custom AC Bimental Magnetic Overcurrent Relays Current Range 0.1 - 22A 3P Standard Type supplier Custom AC Bimental Magnetic Overcurrent Relays Current Range 0.1 - 22A 3P Standard Type supplier

Large Image :  Custom AC Bimental Magnetic Overcurrent Relays Current Range 0.1 - 22A 3P Standard Type

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE, UL
Model Number: UKH-22/3

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 30000 pcs per month
Contact Now
Detailed Product Description
Pins: 3 Type: Thermal
Protection: Overload Usage: Usually With Ac Contactor
Reset: Manual / Automatic Color Of Button: Red

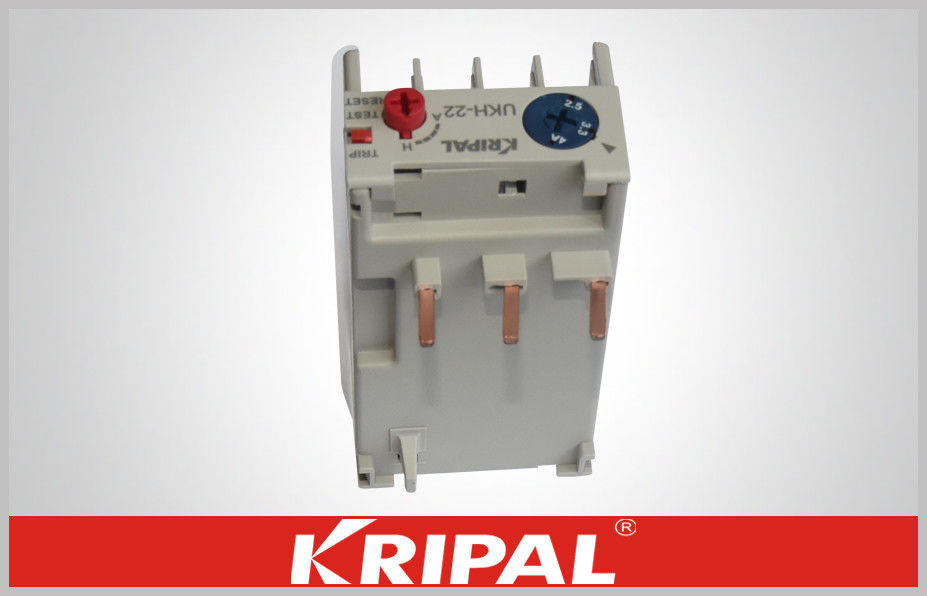

UKH-22/3 OEM /ODM acceptable Custom AC Bimental Magnetic Thermal Overload Relay Current range 0.1~22A 3P Standard type



General:



 Bimetallic thermal overload relays use a bimetallic strip to mechanically open the contacts.  Bimetallic strips consist of two conjoined pieces of metal which expand at different rates when exposed to heat.



This difference forces the strip to bend when heated.  In a thermal relay, the strip is attached by a spring to a contact.  When excess heat from overcurrent causes the strip to bend and pull the spring, the contacts are pulled apart and the circuit is broken.  When the strip is cooled it then returns to its original shape.



Applications:



UKH series thermal overload relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V,

rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation& can be plunged in UKC1 series AC contactor.



It is used for overload protection and has the function of breaking phase protection, temperature compensation and trip indication. It can automatically and passively get back. It can be fixed with contactor together, also be independently fixed.





UKH-22/3 OEM /ODM acceptable Custom AC Bimental Magnetic Thermal Overload Relay Current range 0.1~22A 3P Standard type





Custom AC Bimental Magnetic Overcurrent Relays Current Range 0.1 - 22A 3P Standard Type



Specifications:



Type Current range
UKH-22 0.1-0.16
0.16-0.25
0.25-0.4
0.4-0.63
0.63-1
1-1.6
1.6-2.5
2.5-4
4-6
5-8
6-9
7-10
9-13
12-18
16-22





UKH-22/3 OEM /ODM acceptable Custom AC Bimental Magnetic Thermal Overload Relay Current range 0.1~22A 3P Standard type





Connection:





Main terminal (load) Screw (M4) crimping terminal
Wire dia: 1.25~5.5 mm2 /1.6~2.6
Auxiliary contact Screw (M3.5) crimping terminal







Working condition:



1.  The installation altitude less than 2000m

2.  The surrounding temperature range: from -5°C ~ +40°C

3.  In the non-explosive condition. or without adequate erosion and destruction of gas

      and dust conductive area .

4.  Without  rain and snow invade

5.  Pollution level 2
