    Product Details:

    Place of Origin: China
    Brand Name: KRIPAL
    Certification: CE
    Model Number: UKB7-63 C20

    Payment & Shipping Terms:

    Minimum Order Quantity: 240 pcs
    Price: negotiable
    Packaging Details: 12 poles packed in one small box and then in carton
    Delivery Time: 20 days and depends on ordering quantity
    Payment Terms: T/T, L/C
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Color: White Enclosure, Blue Handle Breaking Capacity: 10 Ka
    Poles Available: 1P 1P+N 2P 3P 3P+N 4P Curve: C
    Rated Current: 6,10,16,20,25,32,40,50,63A
    High Light:

    compact circuit breaker

    ,

    micro circuit breaker

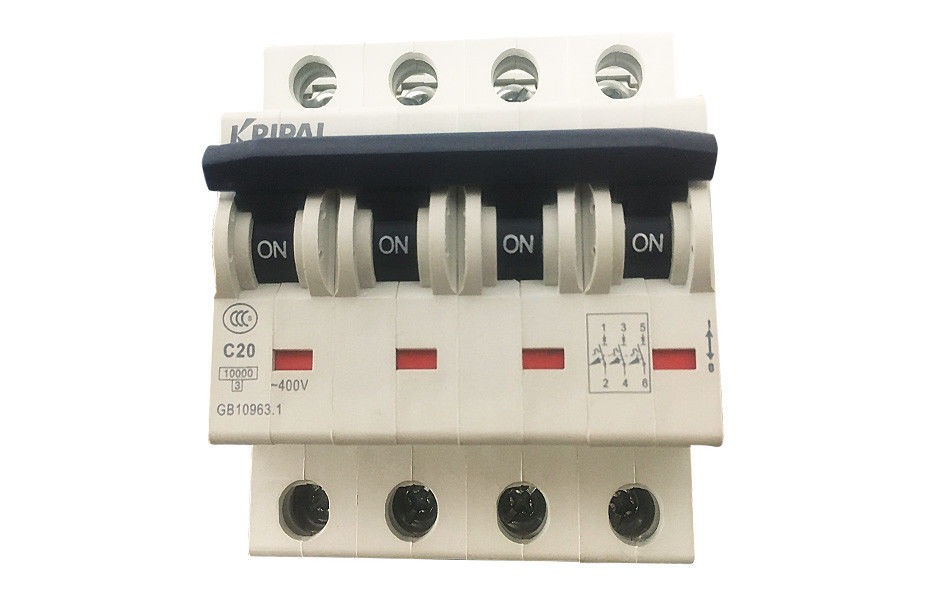

    Breaking capacity: 10KA 4P C20 Mini Circuit Breaker, High Short Circuit & overload Capacity 400V GB10963.1





    UKB7 seires mini circuit breakers  are applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 63Amp. The products provide protection against voerload and short circuit to electric circuits and equipments in household and commercial installation. MCBs are also used as non-frequent changeover of electric circuits.





    Precise Mini Circuit Breaker High Short Circuit And Overload Capacity 0





    Breaking capacity: 10KA 4P C20 Mini Circuit Breaker, High Short Circuit & overload Capacity 400V GB10963.1



    Features:



    1. Protection against both overload and short circuit



    2. High short-circuit capacity



    3. Contact position indication



    4. Applicable to terminal and pin/fork type busbar connection



    5. Easy mounting onto 1~25 mm²  DIN rail







    Breaking capacity: 10KA 4P C20 Mini Circuit Breaker, High Short Circuit & overload Capacity 400V GB10963.1



    Technical Data:



    Technology Specification & Electrical Specification
    Type UKB7-63
    Electric standard IEC60898; GB 10963
    Rated voltage AC230V/400V
    Selection grade 3
    Rated braking capacity 10kA IEC898
    Rated current 6,10,16,20,25,32,40,50,63A
    Tripping character B, C, D characteristic curve
    Maximum connected fuse 100A gL(> 10kA)
    Work environment temperature -5 to +40 degree
    Case protection grade IP40 after installation
    Electric life Not less than 8000 times of breaking and closing
    Mechanical life Not less than 20000 times of breaking and closing





    Mechanical Parameter
    Installation mode Installation at the DIN guide rail of 35mm
    Terminal block capacity Conductor1-25mm; Generatrix thickness 0.8-2mm
    The length of exposed plane 45mm
    Enclosure height 80mm
    Enclosure width 17.5mm every pole





    Tips:



    1. MCBs are for non-professional operation by those untrained, and no maintenance is required



    2. Satisfying conditions and applications as mentioned above,MCBs with “ON-OFF” indicating device are considered suitable for isolation function.



    3. Particular devices such as surge protective devices,surge arresters etc are recommended to install at upstream line to MCBs as precaution against potential surge voltage and current occurring at their power input sides.



    4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.







    FAQ



    A. How's the delivery time?
        Depend on your quantity, usually within 20days after receiving deposit



    B. Would you accept OEM/ODM service?

        Glad to say that there is planning department, technical department and mould tooling center in

         our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.



    C. Would you offer free sample?

        Samples are freely provided and shipping costs is paid on your end usually.



    D What's your guaranty time?

       At least 2 years and depend the product



    E What's your payment term?

       T/T, L/C; other terms is negotiable after further check
