Optional Frame Rotary Isolator Switch Safety Disconnect Switch Semko Lockable

China Optional Frame Rotary Isolator Switch Safety Disconnect Switch Semko Lockable supplier

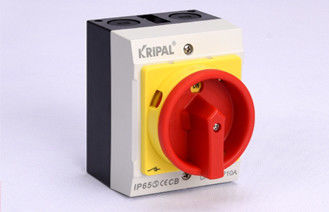

Large Image :  Optional Frame Rotary Isolator Switch Safety Disconnect Switch Semko Lockable

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: Semko,CE,CB
Model Number: UKP0-3P10A

Payment & Shipping Terms:

Minimum Order Quantity: 300pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Product: Safety Disconnect Switch Cable Access: M20/25 Knockouts
Protection Grade: IP65 Red/Yellow Rings: Lockable
Enclosure: Brand-new PC Earth Terminals: Included
Frame: Optional Rated Voltage: 230-440v


Emergency Stop On Off 10A IP65 Rotary Isolator Switch Safety Disconnect Switch Semko lockable



KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.



UKP Switchgear housed in moulded enclosures provide the basis for most industrial applications, and the added benefits offered by the 'UKP' range provide the user with a wealth of opportunities while selecting the correct item for a specific application. Enclosure  IP65 sealing. Good sealing is a feature of the 'UKP' range as is the ability to add a selection of auxiliary blocks providing additional contacts and a choice of Neutral assemblies.



The UKP series rotary switches are  multipurpose high-tech productes with compact and reasonable structure, small volume and wide function adjustment. They're also domestic leading products.



With the UKP range comes an important safety feature, which prevents the enclosure cover being removed when the device has been padlocked in the 'Off' position. When combined with the excellent on-load breaking capacity of the UKP family, this feature ensures that the term 'Safety Switch' is fully satisfied.







Optional Frame Rotary Isolator Switch Safety Disconnect Switch Semko Lockable

                             UKP0-3P10A


Description:

1. These rotary isolator switches are used to switch power to commercial / light industrial applications,widely used in various engineering repair trucks.

2. The red switch can be used as an emergency stop, and can be locked in the “OFF” position using the yellow surrounding ring and padlock.

3. Easy cable access via M20/25 knockouts

4. The screws are captive retained and would not drop off when the lid is turned over.

5. Earth terminal is included

6. Enclosure: brand-new PC, White

7. Standard: manufactured and tested as IEC 60947-3


8. Rated current choosable,three optional frames.



Specifications:



UKP
No. Tech Parameters requirement
1 Rated voltage 230-440V
2 rated current UKP0 10A,16A,20A
UKP1 20A,25A,32A
UKP3 32A,40A,50A,63A
UKP5 63A,80A,100A,125A,150A
3 frequency AC50HZ
4 No. of poles 2P,3P,4P,5P
5 No. of layers make as required with circuit diagram
6 panel size 64*64mm
7 color of handle Black/red
8 Working temperature -25°C~+40°C
9 Working height ≤2,000m
10 Relative humidity ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C
(eg.: humidity 90%----teperature20°C)
11 Installation conditions pollution class III
12 Mechanical life 0.1*106times
13 Electrical life 0.03*106times
14 Operative frequency 120times/hour
15 Transform angle 90°



Optional:

a. Netural contacts

b. 1NO+1NC module

c. Color of handle and surroundings


d. Rated current



e. Frame size



Advantages:



1. Safe and reliable, the safe touch design of the connection terminals can also be used to prevent the bolts from loosing, higher reliability from the double-break contact head on the connection point;



2. Easy assembly and disassembly, bolt mount, central mount, box mount, guide rail mount, etc. provided;



3. Flexible and highly efficient, literally unlimited connection point types including more than 900 commonly used, able to provide multiple solutions;



4. Complete varieties, ON/OFF switches of 10A, 16A, 20A ,25A, 32A, 40A, 50A, 63A, 80A, 100A



Applications:

Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches





General Information:



Certificate: CCC, CE, CB, UL, Semko, KEMA, TUV, SAA, ISO9001-2000 and etc



Main market: Europe, Australia, Middle East, Asia, Africa, South of America.



Marketing channels: Internet (Google, B2B, Homepage); Exhibition (Canton Fair twice per year;

                                  overseas exhibition twice per year at least); Standing Clients;
