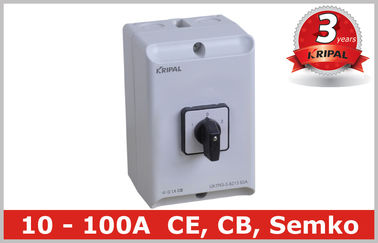

5 Pole Rotary Selector Switch

5 Pole Rotary Selector Switch

    • 5 Pole Rotary Selector Switch
    • 5 Pole Rotary Selector Switch
    • 5 Pole Rotary Selector Switch
  • 5 Pole Rotary Selector Switch

    Product Details:

    Place of Origin: China
    Brand Name: KRIPAL
    Certification: CE, Semko
    Model Number: UKT

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pcs
    Price: negotiable
    Packaging Details: Each unit packed in a individual box
    Delivery Time: 20 days and depends on ordering quantity
    Payment Terms: T/T, L/C
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Box: Brand-new PC Hanld/panel: Black/grey
    Metal Parts: Copper Warranty: 3 Years
    Protection Grade: IP65
    High Light:

    Rotary Selector Switch

    ,

    Explosion Proof Selector Switch



    3poles 4poles 5poles Changeover Motor transfer Switch With IP65 PC Box





    KRIPAL has the DESIGN PATENT for UKT series switches,





    The UKT series rotary switch mainly applies to 440V and below, AC 50Hz or 240V and below DC circuits, for breaking, making and change-over of circuits under infrequently manual operation. and the typical application are: Control switch of 3 phase motors, control switch gear, control switch of instruments, and change-over switch of machinery and welding machine. The series comply with the IEC 60947-3, IEC 60947-5-1.





    There are various kinds of control switch including transfer switch, star-delta switch, commutation switch, manual/auto switch, instrument transfer switch and so on.





    Description:



    1. Forced open contacts


    2. Finger protected


    3. Fulfills the load break requirements up to 690 V and 1000 V


    4. Terminal screws in open position


    5. Red operation lever & yellow panel, pad lockable


    6. Disconnect Switches offer ideal features for their use as: ON-OFF Switches, changeover Switches,

    Multi-step Switches, Code Switches, Gang Switches, Instrument Switch sand Motor switches





    Applications:



    When mains failure occurs, this manual changeover switch enables switch-over from mains to generator power.



    Apply in control of machines, lights, protective devices, measurement equipments, as well as control motors.





    Specifications:



    No.

    Tech Parameters

    Requirement

    1.

    Rated voltage

    230V/440V/690V

    2.

    rated current

    10A,16A,20A, 32A,40A, 63A,80A,100A

    3.

    frequency

    AC50HZ/60HZ

    4.

    No. of poles

    2P,3P,4P,5P

    5.

    No. of layers

    make as required with circuit diagram

    7.

    color of handle

    Black/red

    8.

    Working temperature

    -25°C~+40°C

    9.

     Working height

     ≤2,000m

    10.

     Relative humidity

     ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C

    (eg.: humidity 90%----teperature20°C)

    11.

     Installation conditions

     pollution class III

    12.

     Mechanical life

     0.1*106times

    13.

     Electrical life

     0.03*106times

    14.

     Operative frequency

     120times/hour

    15.

     Transform angle

     30°/45°/60°/90°/120°/135°/150°





    Features:



    ·         Large Variety of functions



    ·         Ability to switch inductive and non-inductive loads



    ·         Made from the best materials with high mechanical, electrical, and thermal resistances



    ·         Double break silver alloy contacts



    ·         Conforming with national and international (IEC 947-1,3) standards



    ·         Screw terminals for cables with or without cable terminal for easy identification



    ·         Fast, easy and economical installation



    ·         Ability to produce custom-made switches, based on customer’s electrical schematic.



    ·         Wide range of attachments to obtain many versions







    About:



    The large selection of types, switching programmes and mounting forms mean that practical

    reliable solutions can be achieved quickly. Whatever the switch, all individual parts are

    optimally co-ordinated, easy to assemble and combine.

    Whether in switching and automation systems, mechanical engineering and construction,

    in the heating, climatic and ventilation industry, environmental technology or other areas.



    KRIPAL switches provide safety!
