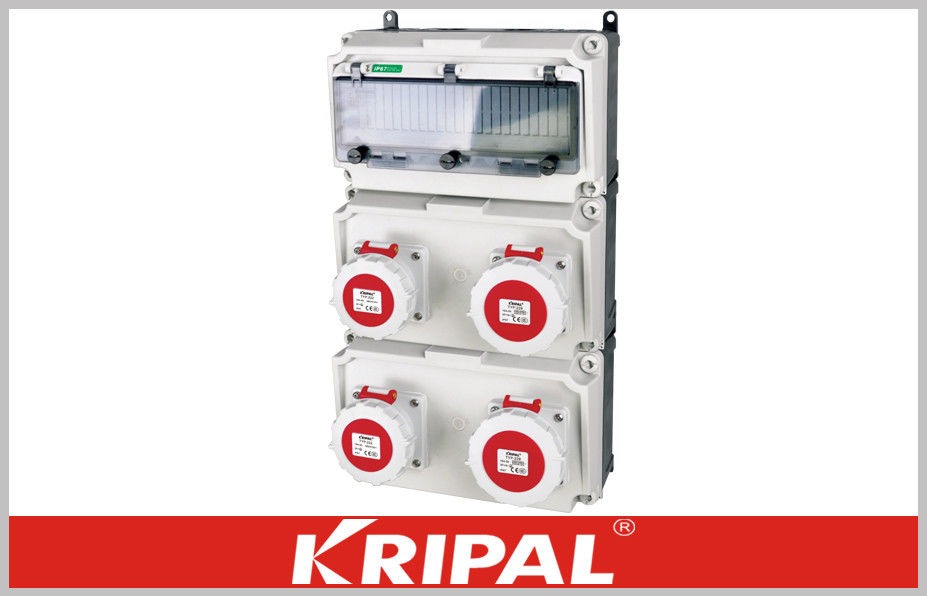

Industrial Distribution Box

Industrial Distribution Box

    • Industrial Distribution Box
  • Industrial Distribution Box

    Product Details:

    Place of Origin: China
    Brand Name: KRIPAL
    Model Number: UK-XZS3-9301

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: negotiable
    Packaging Details: Each unit packed in a ihoneycomb box
    Delivery Time: 20 days and depends on ordering quantity
    Payment Terms: T/T, L/C
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Plastic Protection Grade: IP66,IP65, IP44
    Rated Voltage: AC 230V, 400V Rated Frequency: 50Hz
    Socket Outlet: Customized Circuit Protection: Mcb, Rcd
    High Light:

    Power Pole Distribution Box

    ,

    Temporary Power Distribution Box



    Moduled Industrial Power Distribution Box



    The mold tooling of this item is designed & built by KRIPAL who is the real manufacturer for these items.





    Descriptions:



    UK series PC power maintenance box is in line with relative IEC standards, which is for electrical network (50-60Hz, Voltage not higher than 660V). At the same time, they are with circuit protection like overload, short circuit and current leakage and provide the power outlets for electrical
    equipments.



    1. Lifting DIN rails: We can withdraw the DIN rail and install the circuit breaker and other articles on the DIN rail and then send the device into the Power distribution box which provides a large smooth wiring space significantly for easy the insertion as well as connection of large cables.


    2. Shorter installation times with the new, user-friendly external fixing.


    3. The hinged cover which opens to one side as 180 degree like the door for easy connection work.


    4. All combinations are pre-wired for installation and tested for electric safety and quality.


    5. Standard pre-punched cable entries at the top and at the bottom for M 20 up to M 40.


    6. Joinable modules: The No. Of modules is customized as request.





    Dimensions: 491MM*260MM*151MM





    Specifications:



    Rated insulation voltage:

    AC 400V (660V)

    Rated operation voltage:

    AC 230/400V,

    Rated frequency:

    50-60 Hz

    Protection class:

    IP44, IP65, IP66, IP67

    Single-loop Output Current:

    10A, 16A, 20A, 32A, 40A,50A,63A, 125A etc.

    Single-loop output voltage:

    20-25V, 40-50V, 100-130V, 200-250V, 380-480V, 500-660V

    Poles of output socket:

    2P+E, 3P + E, 3P + N + E

    Applicable environment:

    indoor & outdoor

    Standards

    European standards as IEC/EN;  Australian standards as AS/NZS





    Features:



    1.  Distribution boxes for flexible current supply, portable and handy,;


    2.  High resistance to weathering and chemicals;


    3.  All combinations are tested for electrical safety and quality;


    4.  IP44/IP67 protection degree against dust and liquid bodies;


    5.  IK8 mechanical protection degree;


    6.  High quality thermoplastic material;


    7.  Available component preset as requested;


    8. Widely used in the following sites, such as:
       Repair, extension and demolition, work on existing buildings,
       Construction sites, Exhibition center, Factoriesᄀᆳ







    Custom build options:



    The industrial power distribution box can be customized to suit specific customer requirements.

    The standard products listed can be fitted with different combinations of industrial switch socket outlets or specialized outlets, individual RCCB and over current protection or metering if required.

    Contact us for further information





    Benefits:



    long life of 10 year plus

    double insulated enclosures

    lightweight and tough

    Safety Grey - other colours available





    FAQ


    A. How's the delivery time?
        Depend on your quantity, usually within 20days after receiving deposit



    B. Would you accept OEM/ODM service?

        Glad to say that there is planning department, technical department and mould tooling center in.

        our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.



    C. Would you offer free sample?
       Samples are freely provided and shipping costs is paid on your end usually.



    D What's your guaranty time?
       At least 2 years and depend the product



    E What's your payment term?
      T/T, L/C; other terms is negotiable after further check
